SKU: SE505V-SKF

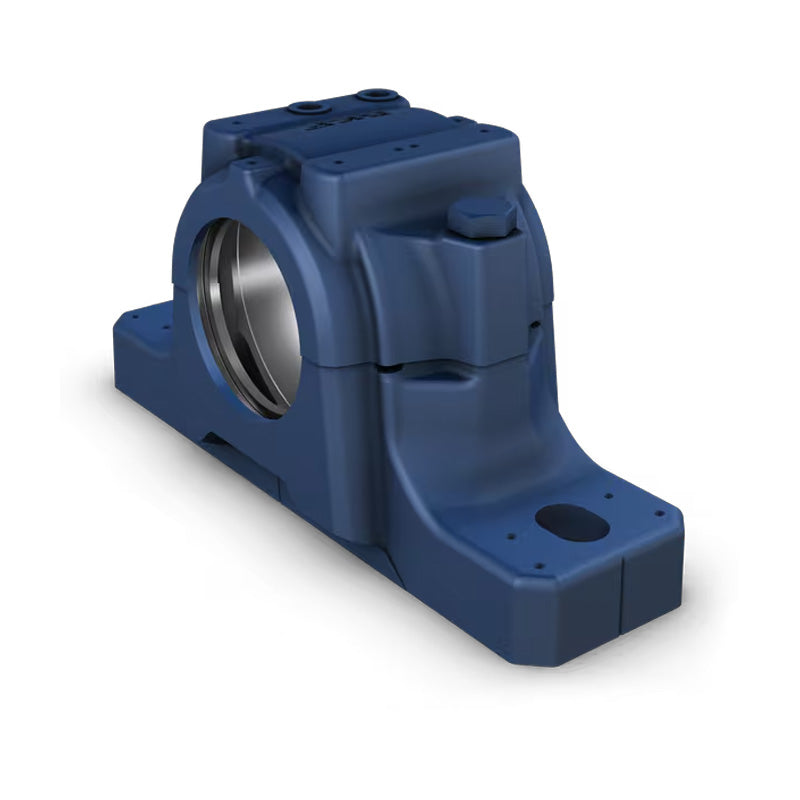

SKF SE505V Cast Iron Split Pillow Block Housing with Open Grease Escape Hole
SKF SE505V Cast Iron Split Pillow Block Housing with Open Grease Escape Hole
Equivalent to: SNL505V
Out of stock
Description
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 130.18mm = 5.125 (5-1/8) inch
Technical
Technical
| da | 20mm |
|---|---|
| A | 2-5/8 inch = 67mm |
| A1 | 1-13/16 inch = 46mm |
| A2 | 3-3/16 inch = 80mm |
| A3 | 5-1/8 inch = 130mm |
| H | 2-15/16 inch = 74mm |
| H1 | 1.575 inch = 40mm |
| H2 | 3/4 inch = 19mm |
| J max | 5-3/8 inch = 137mm |
| J min | 4-7/8 inch = 123mm |
| J | 5-1/8 inch = 130mm |
| L | 6-1/2 inch = 165mm |
| N | 3/4 inch = 20mm |
| N1 | 5/8 inch = 15mm |
| G | 1/2 inch = 12mm |
| Weight | 1.45 kg |
