SKU: SCHB1.11/16-RHP

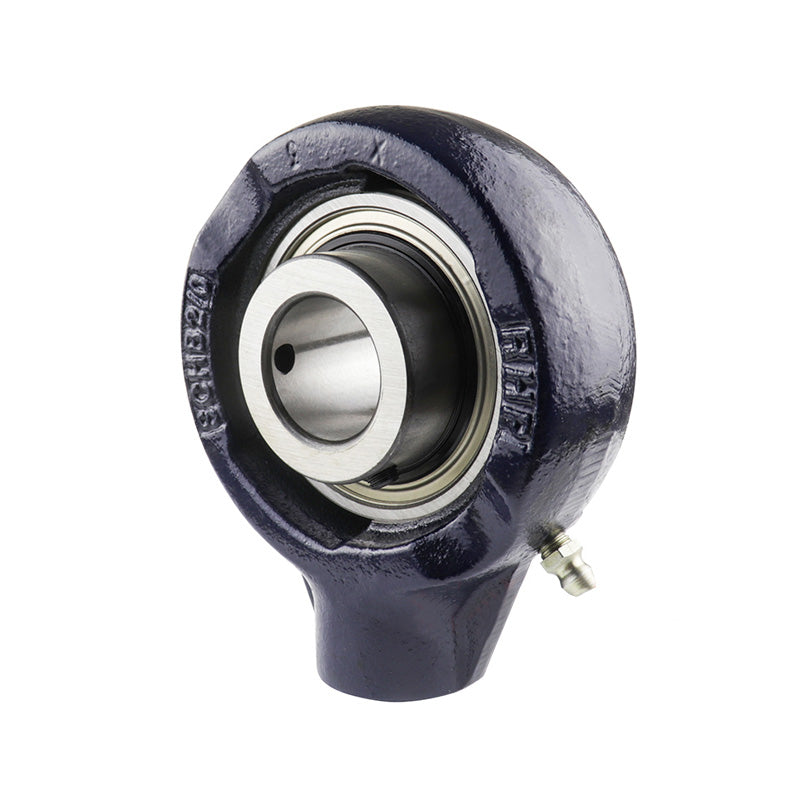

RHP SCHB1-11/16 BSP Thread Cast Iron Hanger Bearing Unit and 1-11/16 inch Bore Insert 121mm Outside Diameter

RHP SCHB1-11/16 BSP Thread Cast Iron Hanger Bearing Unit and 1-11/16 inch Bore Insert 121mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-11/16 inch
G1 0.827 inch
L 4.764 inch
H 5.669 inch
H1 3.252 inch
Threads 1 BSP
A 1.87 inch
A1 1.094 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-11/16G+insonly">1050-1-11/16G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
