SKU: SCH3.3/16-RHP

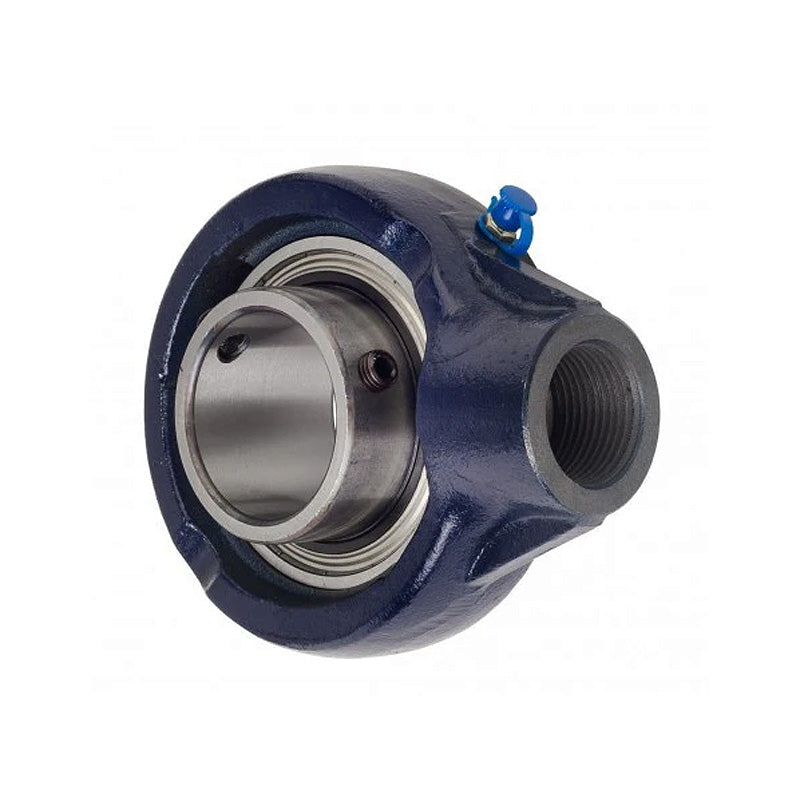

RHP SCH3-3/16 Metric Thread Cast Iron Hanger Bearing Unit and 3-3/16 inch Bore Insert 174.5mm Outside Diameter
RHP SCH3-3/16 Metric Thread Cast Iron Hanger Bearing Unit and 3-3/16 inch Bore Insert 174.5mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 80.96mm = 3.187 (3-3/16) inch
- Outside Diameter:
- 174.5mm
- Style:
- SCH
Technical
Technical
| Bore | 3-3/16 inch |
|---|---|
| G1 | 1.26 inch |
| L | 6.87 inch |
| H | 8.327 inch |
| H1 | 4.874 inch |
| Threads | M48X5 Metric |
| A | 2.815 inch |
| A1 | 1.626 inch |
| B | 3.25 inch |
| s | 1.314 inch |
| d1 | 3.878 inch |
| Dynamic load Cr | 71500 N |
| Static load Cor | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 8.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1080-3-3/16G+insonly">1080-3-3/16G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
