SKU: SCH2.1/4-RHP

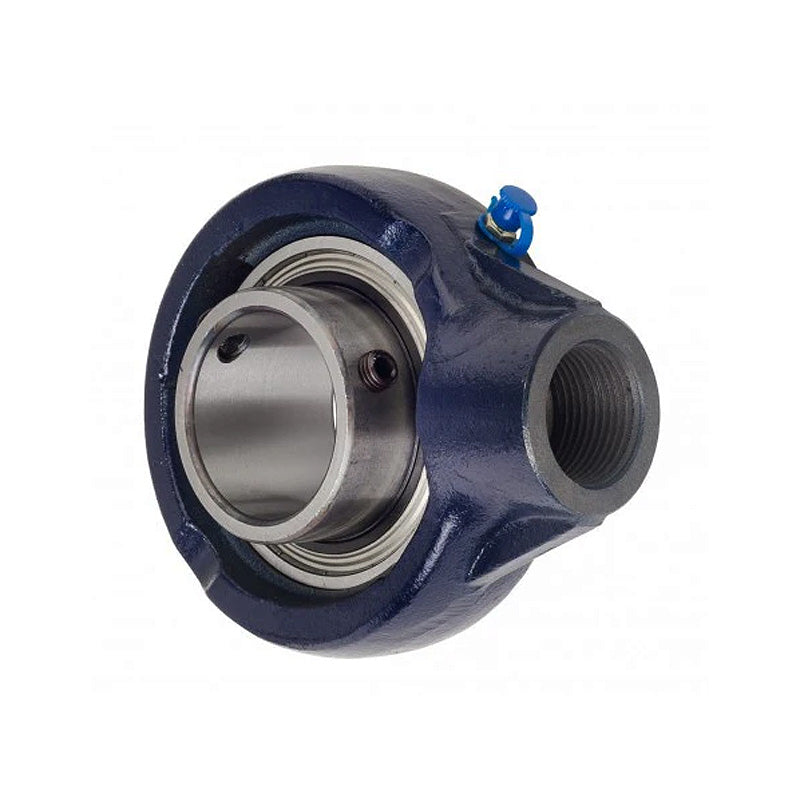

RHP SCH2-1/4 Metric Thread Cast Iron Hanger Bearing Unit and 2-1/4 inch Bore Insert 143mm Outside Diameter

RHP SCH2-1/4 Metric Thread Cast Iron Hanger Bearing Unit and 2-1/4 inch Bore Insert 143mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-1/4 inch
G1 1.142 inch
L 5.63 inch
H 6.831 inch
H1 4 inch
Threads M42x4.5 Metric
A 2.303 inch
A1 1.218 inch
B 2.562 inch
s 1.002 inch
d1 2.966 inch
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 3.5 kg
Insert <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
