SKU: SCE-72-SB-IKO

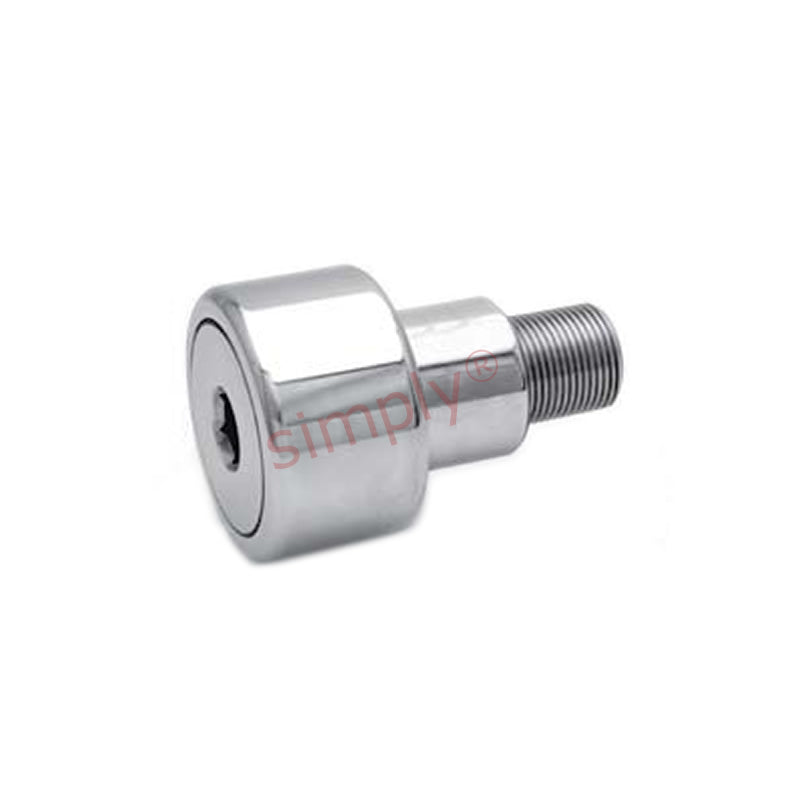

IKO SCE72SB Hex Head Stainless Steel Cylindrical Cam Follower with Eccentric Stud 2-1/4 inch Outside Diameter Allow 7-10 Days
IKO SCE72SB Hex Head Stainless Steel Cylindrical Cam Follower with Eccentric Stud 2-1/4 inch Outside Diameter Allow 7-10 Days
Out of stock
Description
Description
|
Stainless Steel Cylindrical Eccentric Cam Follower with Hex Head: These bearings are dimensionally interchangeable with standard cam followers offered by other major manufacturers. The Seal Tight design minimises contamination to keep machinery running longer. These bearings contain a food-grade lubricant to ensure compatibility with any application. Benefits: Minimises contamination, re-lubricatable, high precision manufacturing. Note: Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
- Pitch:
- UNF 7/8-14
Technical
Technical
| A | 2.25 inch |
|---|---|
| B | 1.25 inch |
| K | 1 inch |
| L | 1.187 inch |
| D | 2 inch |
| E | 1 inch |
| Thread class 2A F | 7/8-14 UNF |
| Min boss diameter | 1-13/64 inch |
| Recommended torque | 1500 lbf-in |
| Basic dynamic rating | 8090 lbs |
