SKU: SC180XP0

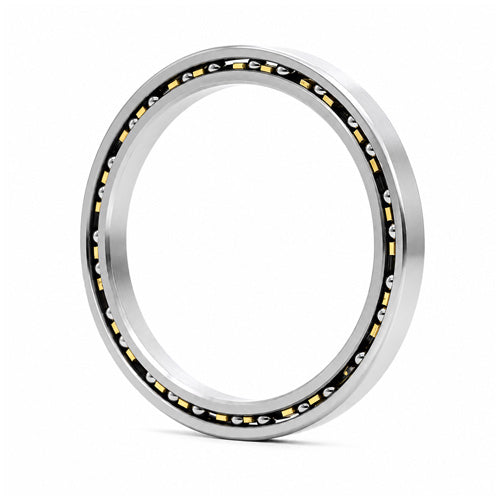

Silverthin SC180XP0 Thin Section Four Point Contact Ball Bearing 18x18.75x0.375 inch - Allow 7-10 Days
Silverthin SC180XP0 Thin Section Four Point Contact Ball Bearing 18x18.75x0.375 inch - Allow 7-10 Days
Equivalent to: KC180XP0
Out of stock
Description
Description
|
Silverthin Thin Section Four-Point Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with gothic arch raceways creating four contact points between the balls and the raceways. This design is excellent for moment loading and reversing axial loading. These bearings can be used for other light loading conditions but is not recommended for pure radial loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal of moment loading, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 457.2mm = 18 inch
- Outside Diameter:
- 476.25mm = 18-3/4 inch
- Width:
- 9.53mm = 3/8 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 18 inch |
|---|---|
| D | 18.75 inch |
| Width | 0.375 inch |
| L1 | 18.277 inch |
| L2 | 18.473 inch |
| L3 | 18.523 inch |
| Static Radial Load | 39.331 kN |
| Dynamic Radial Load | 10.244 kN |
| Static Thrust Load | 98.275 kN |
| Dynamic Thrust Load | 25.631 kN |
| Static Moment Load | 361.16 kN |
| Dynamic Moment Load | 94.089 kN |
| Weight | 0.88kg |
