SKU: SC180CP0

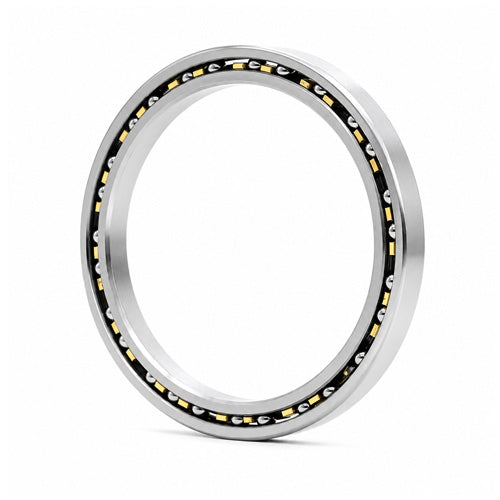

Silverthin SC180CP0 Thin Section Radial Contact Ball Bearing 18x18.75x0.375 inch - Allow 7-10 Days
Silverthin SC180CP0 Thin Section Radial Contact Ball Bearing 18x18.75x0.375 inch - Allow 7-10 Days
Equivalent to: KC180CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 457.2mm = 18 inch
- Outside Diameter:
- 476.25mm = 18-3/4 inch
- Width:
- 9.53mm = 3/8 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 18 inch |
|---|---|
| D | 18.75 inch |
| Width | 0.375 inch |
| L1 | 18.277 inch |
| L2 | 18.473 inch |
| L3 | 18.523 inch |
| Static Radial Load | 39.331 kN |
| Dynamic Radial Load | 10.244 kN |
| Weight | 0.88 kg |
