SKU: SBPFL202-9.OVL

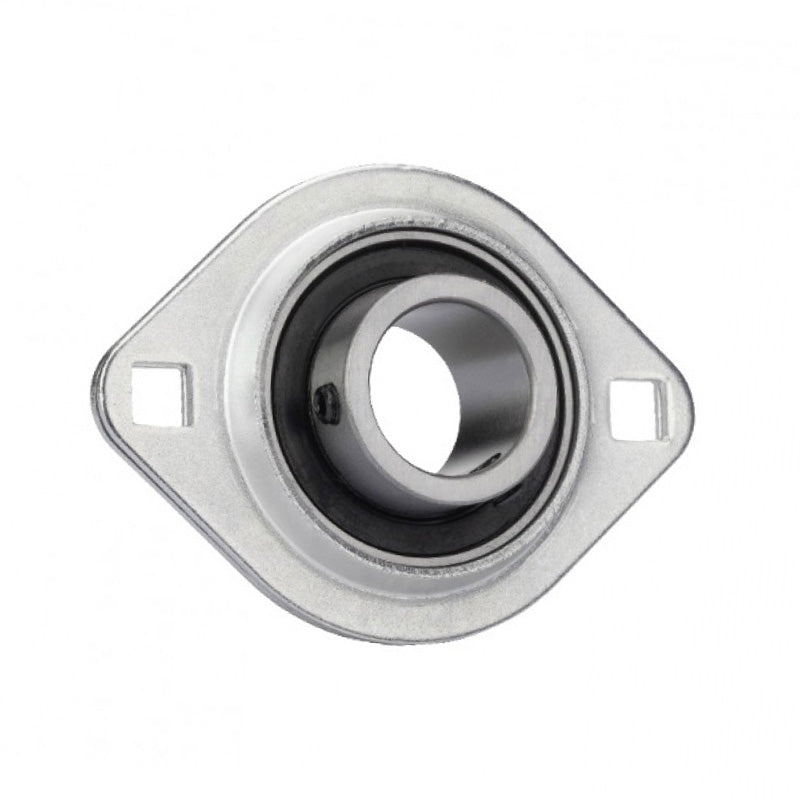

SBPFL202-9 Oval 2 Bolt Pressed Steel Bearing Housing with 9/16 inch insert
SBPFL202-9 Oval 2 Bolt Pressed Steel Bearing Housing with 9/16 inch insert
Equivalent to: SLFL9/16
Out of stock
Share this product
Description
Description
|
2 Bolt Oval Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Style:
- SBPFL
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 9/16 inch |
|---|---|
| a | 81mm |
| e | 63.5mm |
| b | 59mm |
| m | 14mm |
| s | 7.1mm |
| t | 4mm |
| f | 49mm |
| B | 22mm |
| n | 6mm |
| Bolt | 1/4 inch |
| Weight | 0.19 kg |
| Dynamic load | 760 N |
| Static load | 450 N |
