SKU: SB120AR0

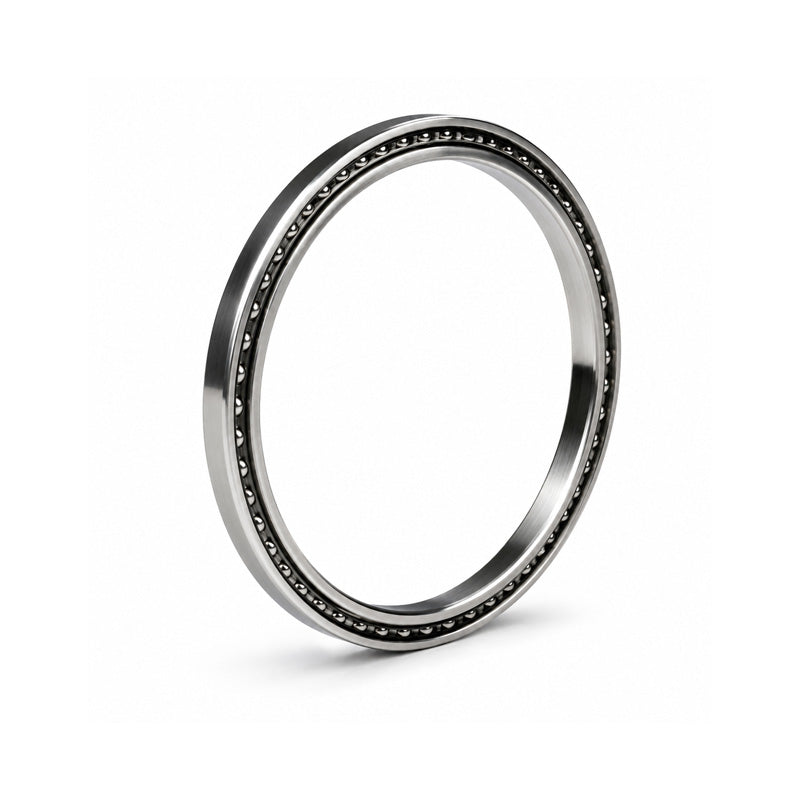

Silverthin SB120AR0 Thin Section Angular Contact Ball Bearing 12x12.625x0.312 inch - Allow 7-10 Days
Silverthin SB120AR0 Thin Section Angular Contact Ball Bearing 12x12.625x0.312 inch - Allow 7-10 Days
Equivalent to: KB120AR0 CSEB120 FPAB1200
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 304.8mm = 12 inch
- Outside Diameter:
- 320.68mm = 12-5/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

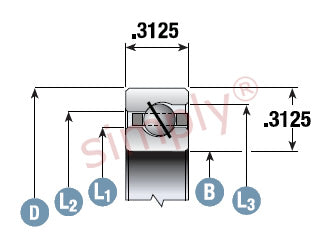

| B | 12 inch |
|---|---|
| D | 12.625 inch |
| Width | 0.312 inch |
| L1 | 12.231 inch |
| L2 | 12.393 inch |
| L3 | 12.445 inch |
| Static Radial Load | 25.987 kN |
| Dynamic Radial Load | 6.539 kN |
| Static Thrust Load | 75.006 kN |
| Dynamic Thrust Load | 18.896 kN |
| Weight | 0.3765kg |
