SKU: SALKB18F-SKF

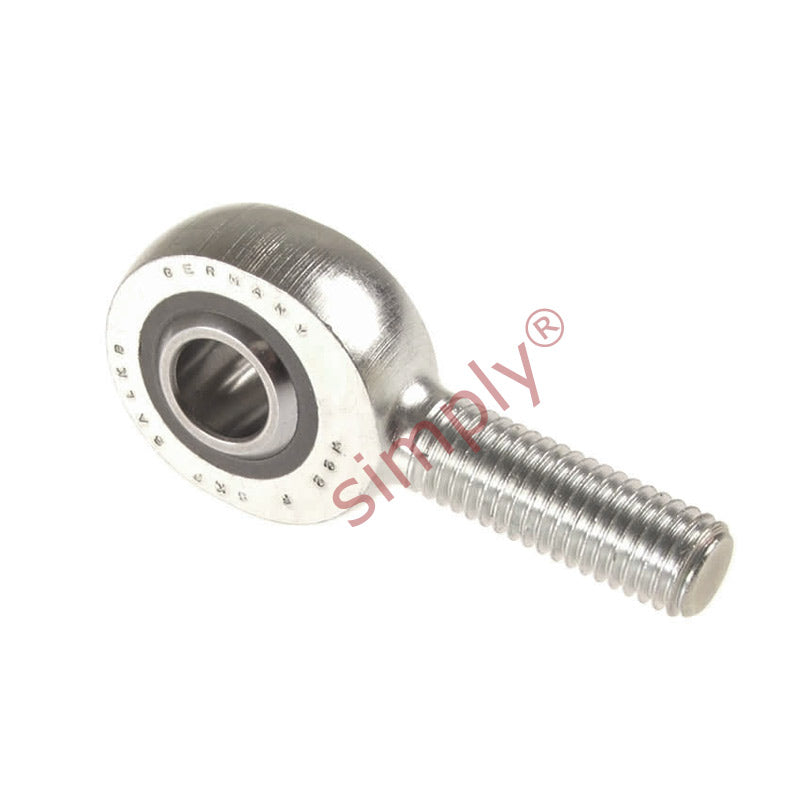

SKF SALKB18F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M18x1.5 Thread
SKF SALKB18F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M18x1.5 Thread
Equivalent to: MSL-M18
Out of stock
Description
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M18x1.5
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 18mm
- Material:
- PTFE FRP Lined
Technical

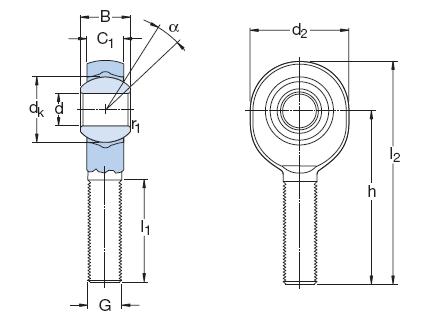

Technical
| d | 18mm |
|---|---|
| d2 max | 47mm |
| G | M18x1.5 |
| B | 23mm |
| C1 max | 16.5mm |
| h | 72mm |
| a | 15deg |
| Dynamic load C | 26 kN |
| Static load Co | 41.5 kN |
| Weight | 0.26 kg |
| dk | 31.7mm |
| l1 min | 41mm |
| l2 max | 97mm |
| r1 min | 0.3mm |
