SKU: SAFW208-25

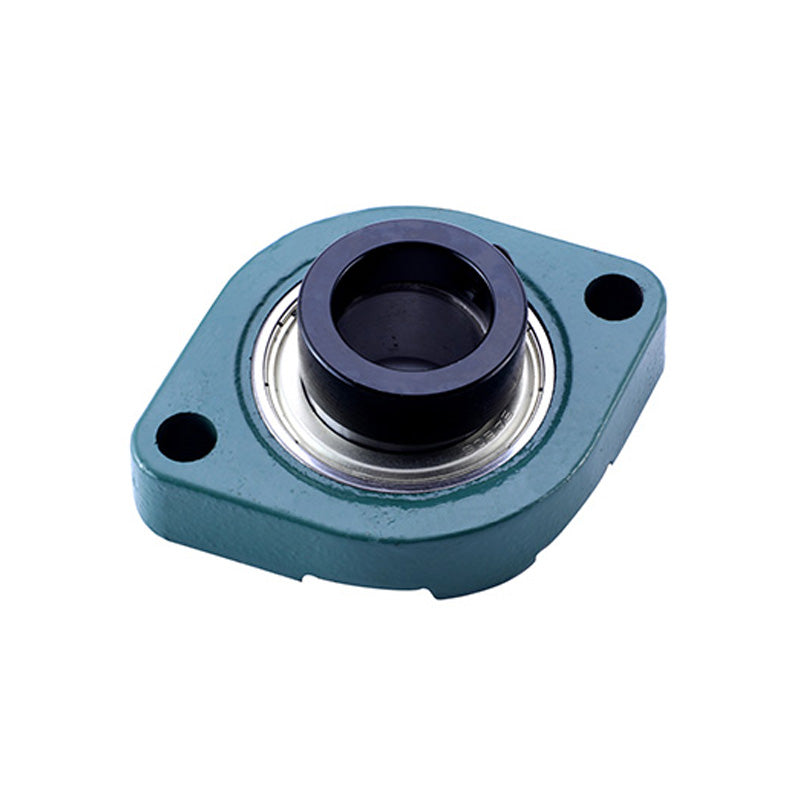

SAFW208-25 Imperial Two Bolt Cast Iron Oval Housing with 1-9/16 inch Bore
SAFW208-25 Imperial Two Bolt Cast Iron Oval Housing with 1-9/16 inch Bore
Out of stock
Description
Description
|
SAFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back eccentric collar bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, eccentric collar fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- SAFW
- Bolt Hole Centres:
- 119mm
Technical
Technical
| d | 1-9/16 inch |
|---|---|
| a | 5-29/32mm |
| e | 119mm |
| b | 100mm |
| i | 14.5mm |
| s | 14mm |
| l | 24mm |
| Bolt | M12 |
| z | 47.2mm |
| B1 | 43.7mm |
| n | 11mm |
| Weight | 1.4 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
