SKU: SAF236-SKF

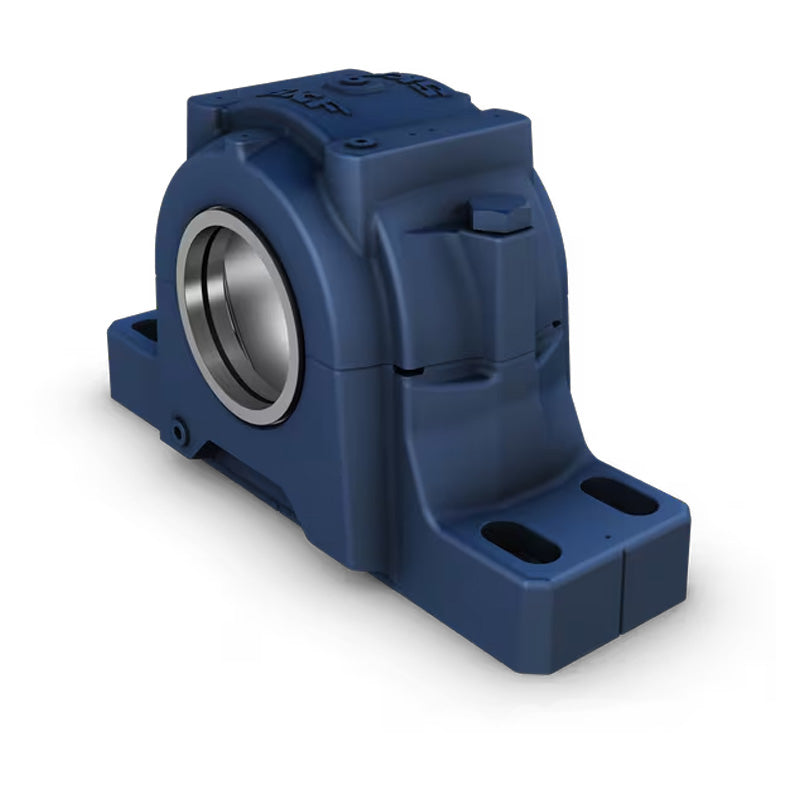

SKF SAF236 Cast Iron Split Pillow Block Housing
SKF SAF236 Cast Iron Split Pillow Block Housing
Out of stock
Description
Description
|
SKF SAF Split Plummer Block Housings: SAF split plummer block housings are popular SKF bearing housings with inch dimensions, developed to be the first choice for design, quality and economy. These housings are made of grey cast iron and consist of a cap and base. They allow the incorporated bearings to achieve maximum service life with less need for maintenance. Benefits: Simple mounting and dismounting, designed to accommodate both grease and oil lubrication. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| A1 | 7-1/8 inch = 180.98mm |
|---|---|
| A2 | 10 inch = 254mm |
| A3 | 12-1/2 inch = 317.5mm |
| H | 14-7/8 inch = 377.83mm |
| H1 | 7-1/2 inch = 190.5mm |
| H2 | 3 inch = 76.2mm |
| Static oil level H3 | - inch = -mm |
| J max | 23-5/8 inch = 600.08mm |
| J min | 20-7/8 inch = 530.23mm |
| J1 | 4-5/8 inch = 117.48mm |
| L | 26-3/4 inch = 679.45mm |
| Bolts (required) G | (4) 1 inch = 24mm |
