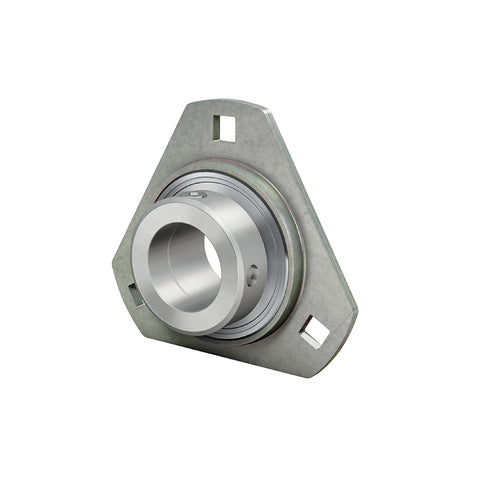

INA RRTR20XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 20mm Bore
INA RRTR20XL Three Bolt Sheet Steel Triangle Housing with Eccentric Collar Insert 20mm Bore
Out of stock
Description
Description
|
INA 3 Bolt Triangular Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. The housings are screw mounted on the adjacent construction. Benefits: Suitable for a lightweight construction, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Style:
- RRTR
- Pitch Circle Diameter:
- 71.5mm
Technical
Technical

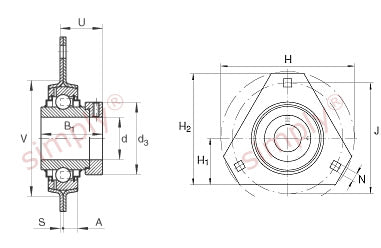

| d | 20mm |
|---|---|
| H | 90.5mm |
| B1 | 43.7mm |
| A | 8mm |
| d3 max | 33mm |
| H1 | 33.3mm |
| H2 | 76.2mm |
| J | 71.5mm |
| N | 8.7mm |
| S1 | 2mm |
| U | 28.6mm |
| V | 55mm |
| Mass | 0.32 kg |
| Load carrying capacity of housing Cor G | 3200 N |
| Basic dynamic load rating Cr | 13600 N |
| Basic static load rating Cor | 6600 N |
| Designation of housing | FLAN47-MSTR (2 X) |
| Designation of bearing | GE20-XL-KRR-B |
