SKU: RPNA28/44-EU

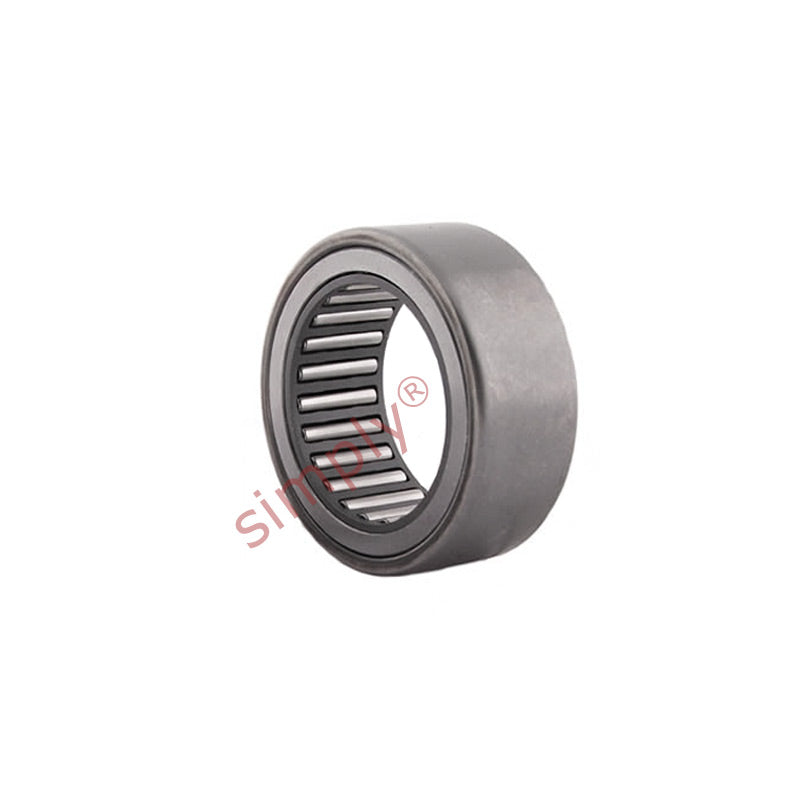

RPNA28/44 Budget Needle Roller Bearing Alignment Type no Inner Race 28x44x20
RPNA28/44 Budget Needle Roller Bearing Alignment Type no Inner Race 28x44x20
Out of stock
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 44mm
- Width:
- 20mm
Technical
Technical
| Fw | 28mm |
|---|---|
| D | 44mm |
| B | 20mm |
| Dynamic load C | 22000 N |
| Static load Co | 36500 N |
| Fatigue load limit Pu | 4550 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| D1 | 38.5mm |
| r min | 1mm |
| Da min | 37.5mm |
| Da max | 39mm |
| ra max | 1mm |
| Weight | 110 g |
