SKU: RCJTY5/8

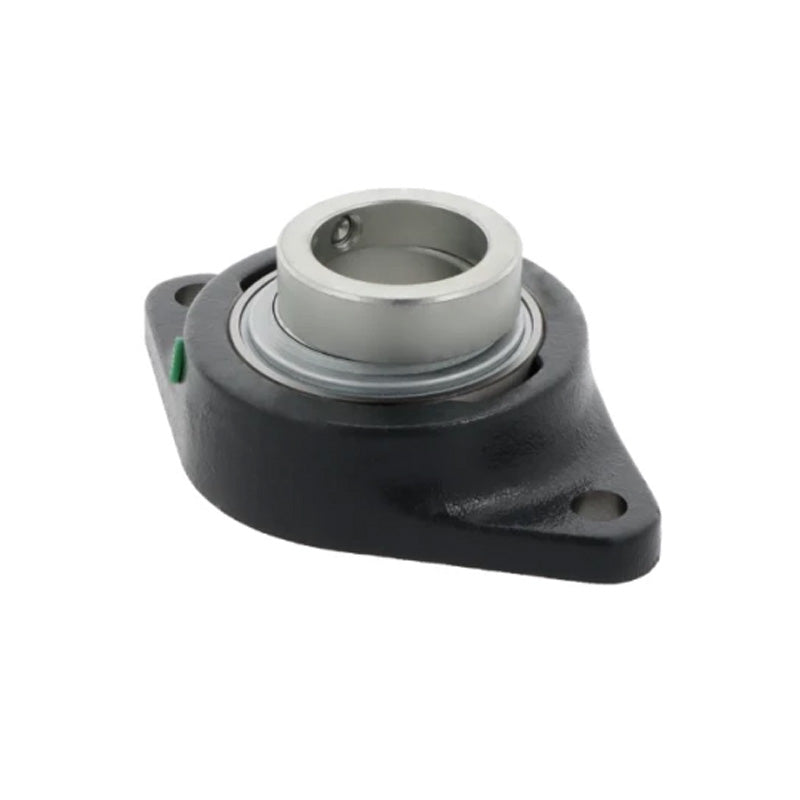

INA RCJTY5/8 Two Bolt Cast Iron Oval Housing with Grub Screw Insert 5/8 inch Bore
INA RCJTY5/8 Two Bolt Cast Iron Oval Housing with Grub Screw Insert 5/8 inch Bore
Out of stock
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- RCJTY
- Bolt Hole Centres:
- 76.5mm = 3.012 inch

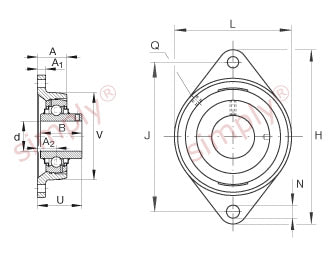

Technical
Technical
| d | 5/8 inch |
|---|---|
| d | 15.9mm |
| H | 3.898 inch |
| H | 99mm |
| U | 1.295 inch |
| U | 32.9mm |
| A | 0.945 inch |
| A1 | 0.394 inch |
| A2 | 0.669 inch |
| B | 1.079 inch |
| J | 3.012 inch |
| L | 2.244 inch |
| N | 0.453 inch |
| Q | 1/4-28 UNF |
| V | 2.244 inch |
| Mass | 0.79 lbs |
| Basic dynamic load rating Cr | 2200 lbf |
| Basic dynamic load rating Cr | 10100 N |
| Basic static load rating Cor | 1070 lbf |
| Basic static load rating Cor | 4750 N |
| Designation of housing | GG.CJT03 |
| Designation of bearing | GY1010-KRR-B-AS2/V |
