SKU: RCJT2-7/16

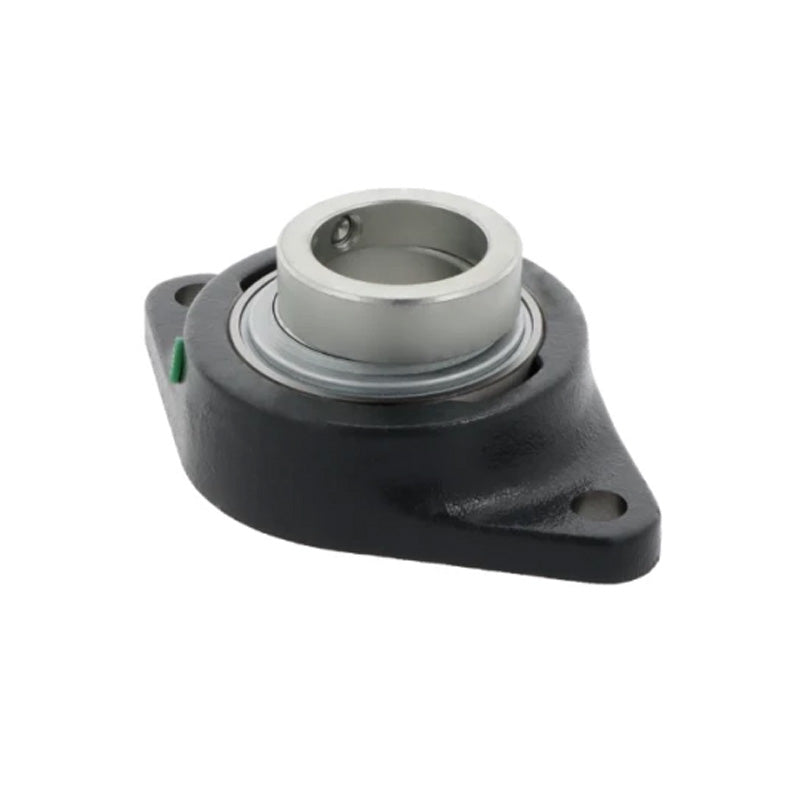

INA RCJT2-7/16 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 2-7/16 inch Bore
INA RCJT2-7/16 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 2-7/16 inch Bore
Out of stock
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- RCJT
- Bolt Hole Centres:
- 202.01mm = 7.953 (7-61/64) inch
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| d | 61.9mm |
| H | 9.409 inch |
| H | 239mm |
| U | 3.185 inch |
| U | 80.8mm |
| A | 1.949 inch |
| A1 | 0.709 inch |
| A2 | 1.339 inch |
| B1 | 3.067 inch |
| d3 | 3.307 inch |
| J | 7.953 inch |
| L | 5.512 inch |
| N | 0.709 inch |
| Q | 1/8 NPT |
| V | 5.512 inch |
| Mass | 9.1 lbs |
| Basic dynamic load rating Cr | 11800 lbf |
| Basic dynamic load rating Cr | 56000 N |
| Basic static load rating Cor | 8100 lbf |
| Basic static load rating Cor | 36000 N |
| Designation of housing | GG.CJT12 |
| Designation of bearing | G1207-KRR-B-AS2/V |
