SKU: RASE2-3/16-INA

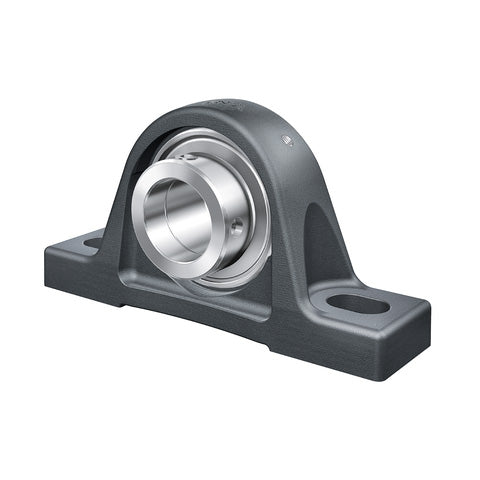

INA RASE2-3/16 Cast Iron Plummer Block Housing with Eccentric Collar Insert 2-3/16 inch Bore
INA RASE2-3/16 Cast Iron Plummer Block Housing with Eccentric Collar Insert 2-3/16 inch Bore
Out of stock
Description
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: High load carrying capacity, re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- RASE
- Bolt Hole Centres:
- 175.74mm = 6.919 inch
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| d | 55.6mm |
| L | 8.858 inch |
| L | 225mm |
| H2 | 4.98 inch |
| H2 | 126.5mm |
| A | 2.461 inch |
| A1 | 1.378 inch |
| B1 | 2.811 inch |
| d3 max | 2.992 inch |
| H | 2.5 inch |
| H1 | 0.984 inch |
| J | 6.919 inch |
| N | 0.709 inch |
| N1 | 0.443 inch |
| Q | 1/8 NPT |
| S1 | 1.717 inch |
| Mass | 8.96 lbs |
| Basic dynamic load rating Cr | 9800 lbf |
| Basic dynamic load rating Cr | 46000 N |
| Basic static load rating Cor | 6600 lbf |
| Basic static load rating Cor | 29000 N |
| Designation of housing | GG.ASE11 |
| Designation of bearing | G1203-KRR-B-AS2/V |
