SKU: PFD35TF-SKF

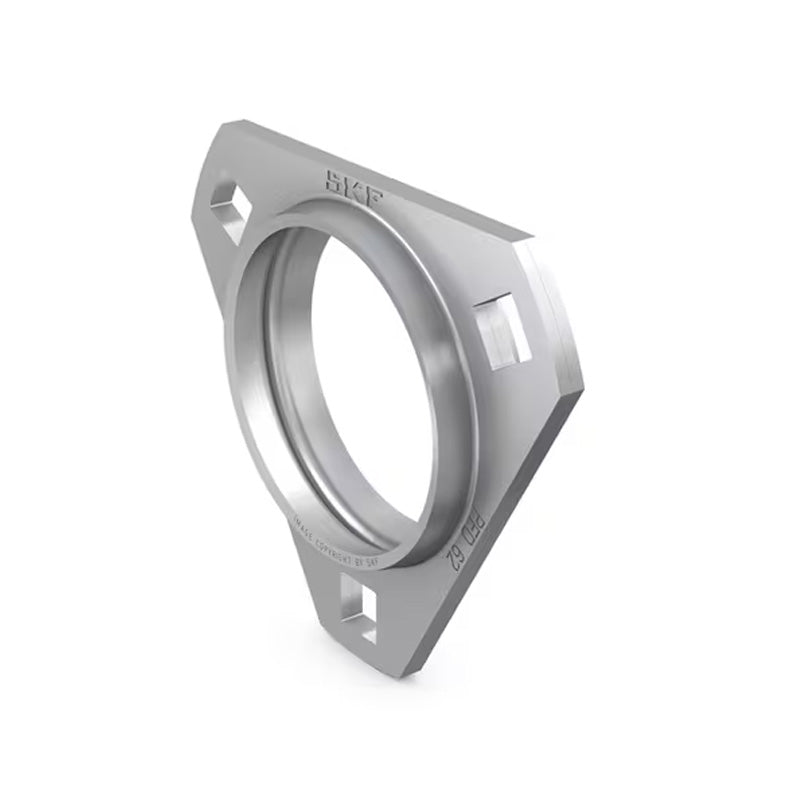

SKF PFD35TF Pressed Steel Triangular Housing with Grub Screw 35mm Insert
SKF PFD35TF Pressed Steel Triangular Housing with Grub Screw 35mm Insert
Out of stock
Description
Description
| SKF Triangular Flanged Y-bearing Units with Pressed Steel Housing and Grub Screws: These units are designed for simple applications with limited loads and speeds. These triangular flanged housings are made of pressed steel and have three square holes for attachment bolts. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- PFD
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 2.5mm |
| A2 | 10mm |
| B | 42.9mm |
| Da | 81mm |
| H | 122mm |
| H1/L | 45mm |
| J | 100mm |
| N | 11mm |
| G | 10mm |
| T | 27.9mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Permissible housing load | 6.5 kN |
| Weight | 0.64 kg |
