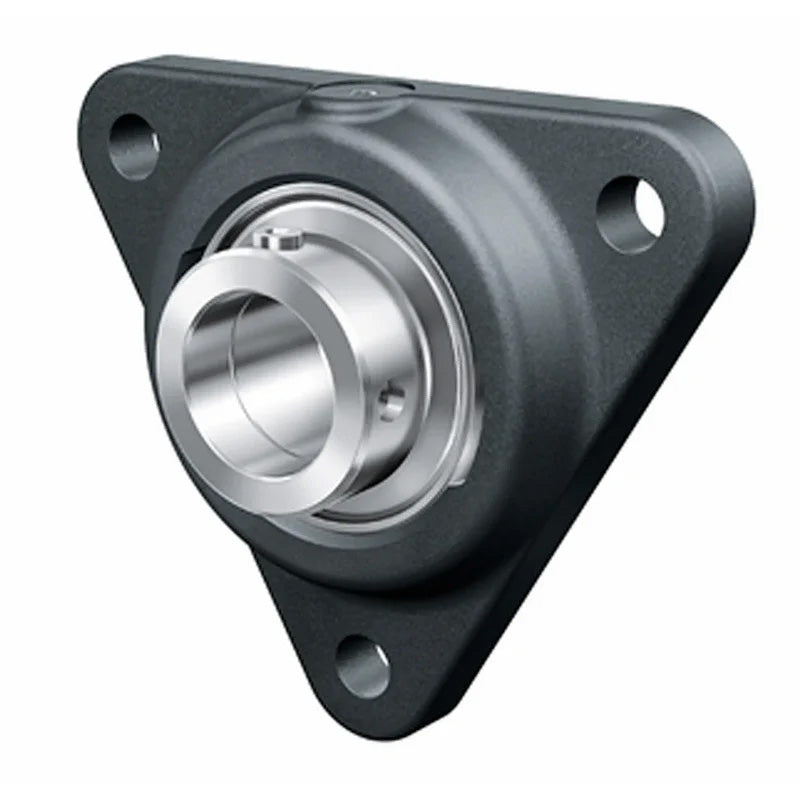

INA PCFTR12XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 12mm Bore
INA PCFTR12XL Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 12mm Bore
Out of stock
Description
Description
|
INA 3 Bolt Triangular Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This triangular cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Style:
- PCFTR
- Pitch Circle Diameter:
- 76.1mm

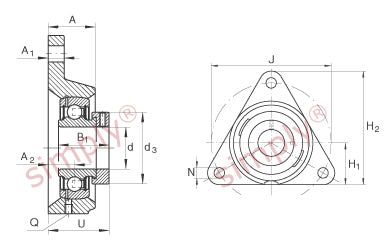

Technical
Technical
| d | 12mm |
|---|---|
| H2 | 81mm |
| U | 32.1mm |
| A | 20mm |
| A1 | 11mm |
| A2 | 10mm |
| B1 | 28.6mm |
| d3 max | 28.4mm |
| H1 | 31mm |
| J | 76.1mm |
| N | 11.5mm |
| Q | M6 |
| Mass | 0.4 kg |
| Basic dynamic load rating Cr | 10100 N |
| Basic static load rating Cor | 4750 N |
| Designation of housing | CFTR03 |
| Designation of bearing | GRAE12-XL-NPP-B |
