SKU: P1-1/4TF-SKF

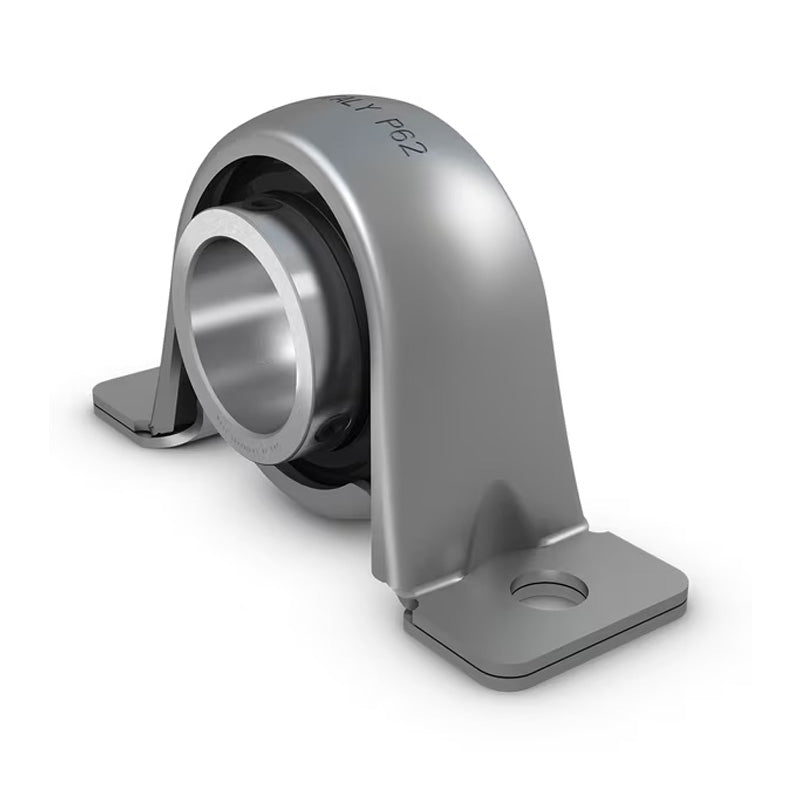

SKF P1-1/4TF Pressed Steel Plummer Block with Grub Screw Insert 1-1/4 inch Bore
SKF P1-1/4TF Pressed Steel Plummer Block with Grub Screw Insert 1-1/4 inch Bore
Out of stock
Description
Description
| SKF Y-bearing Plummer Block Units with a Pressed Steel Housing: These units are designed for simple applications with limited loads and speeds. The two-part housing, which has no provision for re-lubrication, is ordered separately from the insert bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- P
- Bolt Hole Centres:
- 106mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| A | 41mm |
| A1 | 27mm |
| B | 42.9mm |
| H | 78mm |
| H1 | 39.2mm |
| H2 | 5mm |
| J | 106mm |
| L | 130mm |
| N | 11.2mm |
| G | 10mm |
| s1 | 25.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Permissible housing load radial | 3.3 kN |
| Weight | 0.73 kg |
| Housing | YAR207-104-2F |
| Insert | P72 |
