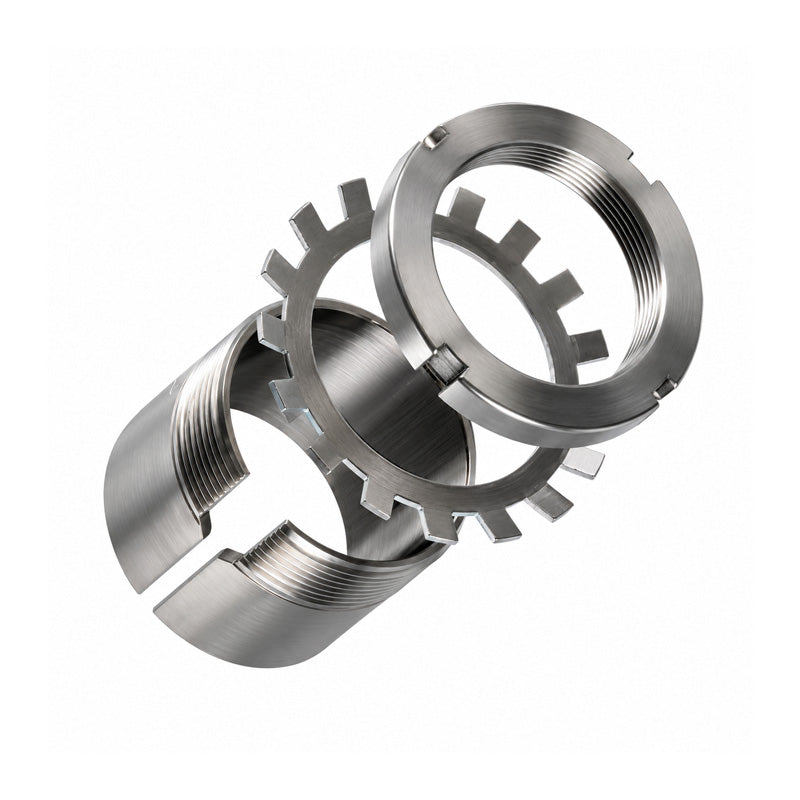

SKF OH3196H Adaptor Sleeve with Oil Holes for 450mm Shaft

Name: SKF OH3196H Adaptor Sleeve with Oil Holes for 450mm Shaft
Brand: SKF
SKU: OH3196H-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 450mm
Outside Diameter:: 620mm
Width:: 335mm

Technical

---	Dimensions
d1	450mm
d	480mm
d3	620mm
B1	335mm
B2	75mm
B3	95mm
G	Thread 480x5
G1	M8
A	6.5mm
Weight	135 kg
---	Assembly Parts
Sleeve	OH3196H
Nut	HM3196
Washer	MS3196
Hydraulic nut	HMV96E
---	Matching Spherical Roller Bearings
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23196K+taper>23196K</a>
