SKU: NUP248MA/C3-SKF

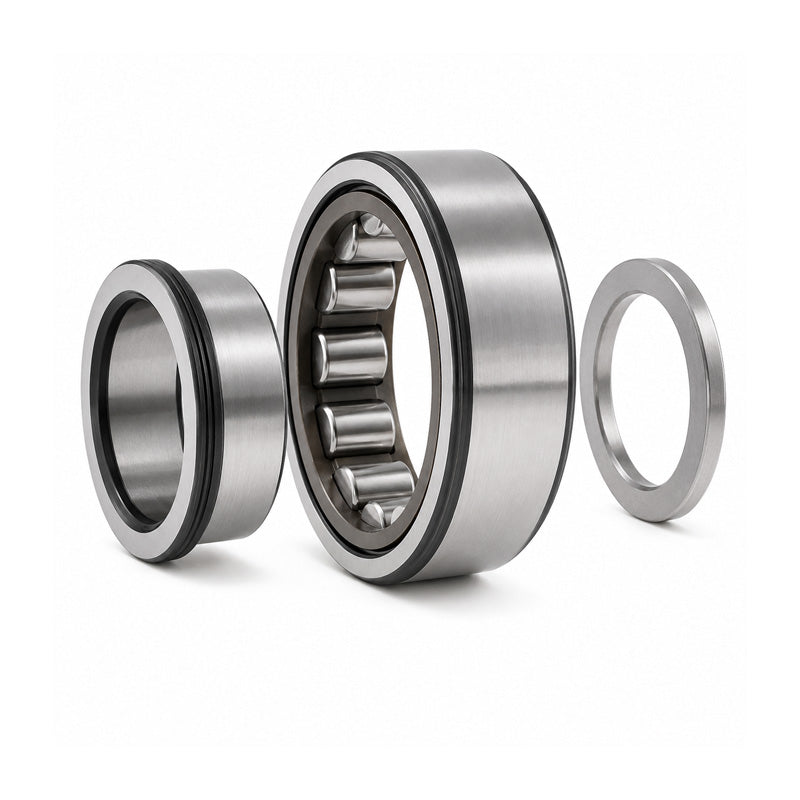

SKF NUP248MAC3 Single Row Cylindrical Roller Bearing with Brass Cage 240x440x72mm
SKF NUP248MAC3 Single Row Cylindrical Roller Bearing with Brass Cage 240x440x72mm
Out of stock
Description
Description
|
SKF NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 240mm
- Outside Diameter:
- 440mm
- Width:
- 72mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 240mm |
|---|---|
| D | 440mm |
| B | 72mm |
| Dynamic load C | 952 kN |
| Static load Co | 1370 kN |
| Fatigue load limit Pu | 129 kN |
| Reference speed | 1600 rpm |
| Limiting speed | 2200 rpm |
| Weight | 53.5 kg |
| d1 | 313mm |
| D1 | 365mm |
| F,E | 295mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| da min | 257mm |
| db | 317mm |
| Da max | 423mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.15 |
