SKU: NUP2306ECP/C3-SKF

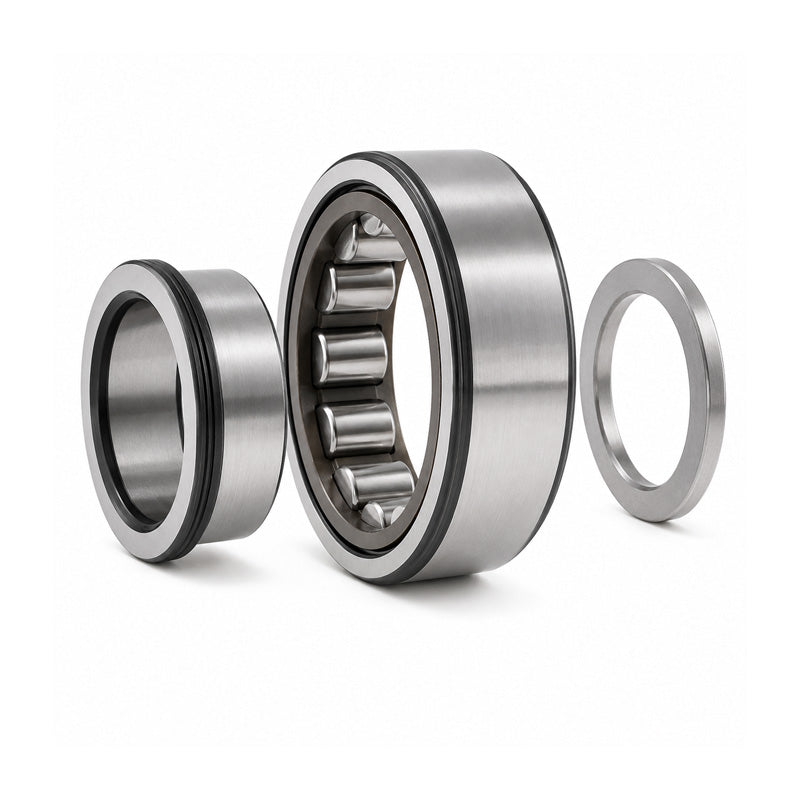

SKF NUP2306ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 30x72x27mm
SKF NUP2306ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 30x72x27mm
Out of stock
Description
Description
|
SKF NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 27mm |
| Dynamic load C | 83 kN |
| Static load Co | 75 kN |
| Fatigue load limit Pu | 9.65 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.55 kg |
| Alt cage | ML |
| d1 | 45mm |
| D1 | 58.9mm |
| F,E | 40.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| da min | 37mm |
| db | 47mm |
| Da max | 65mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.25 |
