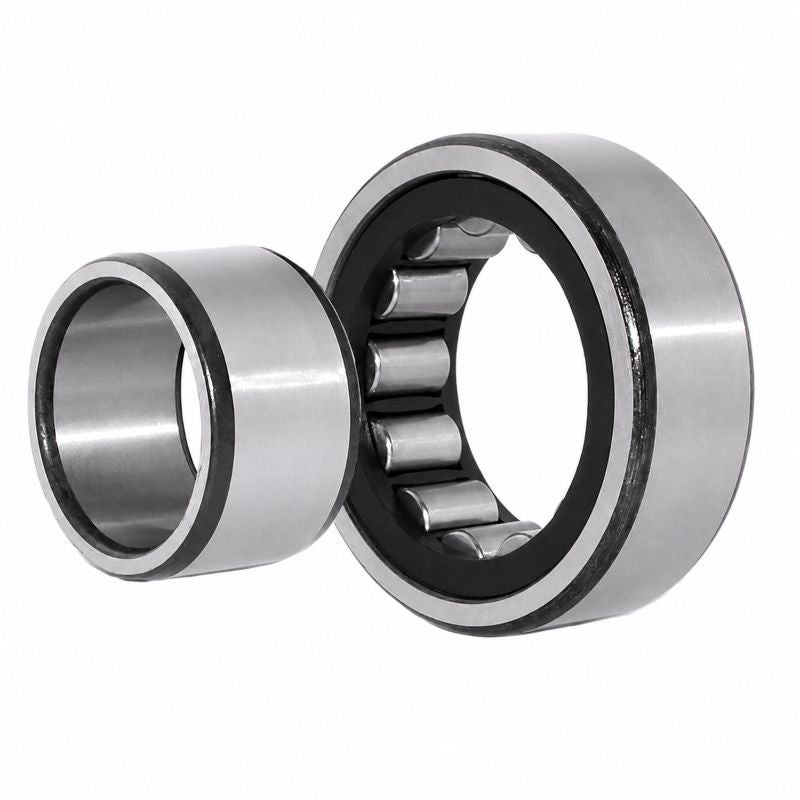

SKF NU411 Single Row Cylindrical Roller Bearing 55x140x33mm
SKF NU411 Single Row Cylindrical Roller Bearing 55x140x33mm
Out of stock
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 140mm |
| B | 33mm |
| Dynamic load C | 142 kN |
| Static load Co | 140 kN |
| Fatigue load limit Pu | 18.6 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6300 rpm |
| Weight | 2.5 kg |
| d1 | 85.2mm |
| D1 | 108mm |
| F,E | 77.2mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 2.6mm |
| da min | 69mm |
| da max | 74mm |
| db | 79mm |
| Da max | 126mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
