SKU: NTA1018-TRA1018-MB

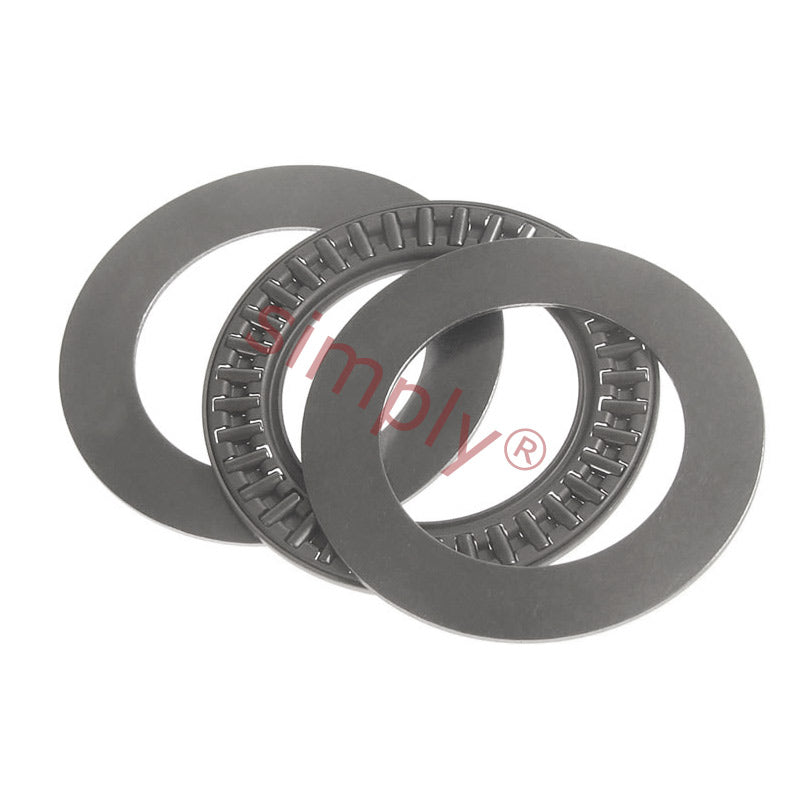

Major Brand NTA1018 Needle Roller Cage Thrust Assembly with 2 TRA1018 Washers 0.625x1.125x0.1406 inch
Major Brand NTA1018 Needle Roller Cage Thrust Assembly with 2 TRA1018 Washers 0.625x1.125x0.1406 inch
Equivalent to: NTC1018+TRA1018
Out of stock
Description
Description
|
NTA Imperial Series Needle Thrust Bearings Complete: Needle roller cage thrust assemblies complete with 2 TRA series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 3.57mm = 0.141 (9/64) inch
Technical
Technical
| d | 0.625 inch |
|---|---|
| D | 1.125 inch |
| Eb | 0.0806 inch |
| Dw | 0.71 inch |
| dw | 1.02 inch |
| Dynamic load | 9.79 kN |
| Static load | 30.38 kN |
| Limiting speed | 15000 rpm |
| Weight | 0.003178 kg |
| Washer | Dimensions |
| d | 0.625 inch |
| d1 | 1.125 inch |
| h min | 0.03 inch |
| h max | 0.032 inch |
| Pilot min | 0.622 inch |
| Pilot max | 0.625 inch |
| Dia to clear washer | 1.156 inch |
| Weight | 0.006 lbs |
