SKU: NP2.1/2.RHP

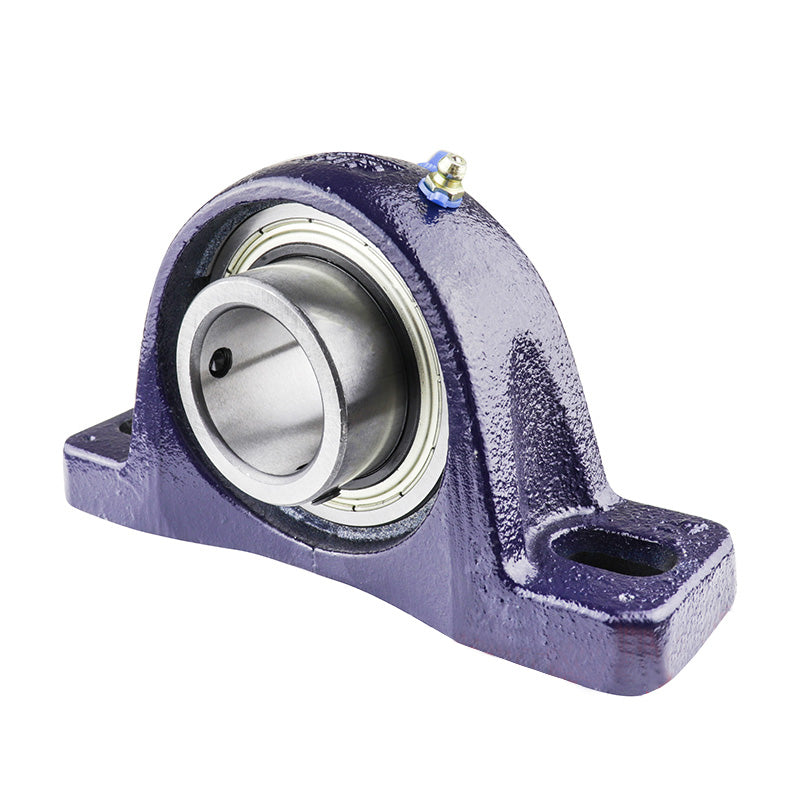

RHP NP2-1/2 Two Bolt Cast Iron Pillow Block and 2-1/2 Bore Grub Screw Full Width Insert
RHP NP2-1/2 Two Bolt Cast Iron Pillow Block and 2-1/2 Bore Grub Screw Full Width Insert
Out of stock
Share this product
Description
Description
|
RHP NP Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- NP
- Bolt Hole Centres:
- 6.937-7.563 inch
Technical
Technical

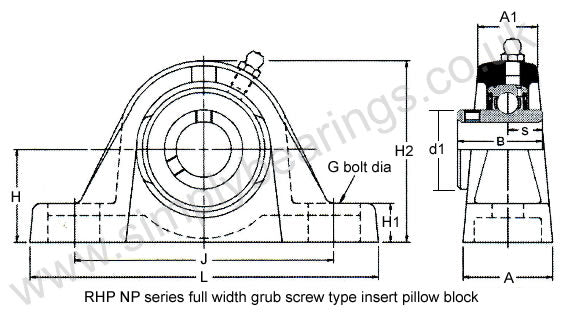

| Bore | 2-1/2 inch |
|---|---|
| L | 9.5 inch |
| H | 2.752 inch |
| H1 | 0.874 inch |
| H2 | 5.563 inch |
| J max | 7.563 inch |
| J min | 6.937 inch |
| G | 0.625 inch |
| A | 2.748 inch |
| A1 | 1.811 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 3.244 inch |
| Dynamic load Cr | 57500 N |
| Static load Cor | 40000 N |
| Rec max speed | 2600 rpm |
| Weight | 5.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1065-2-1/2G+insonly">1065-2-1/2G Click Here</a> |
| Casting group | 10/65 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
