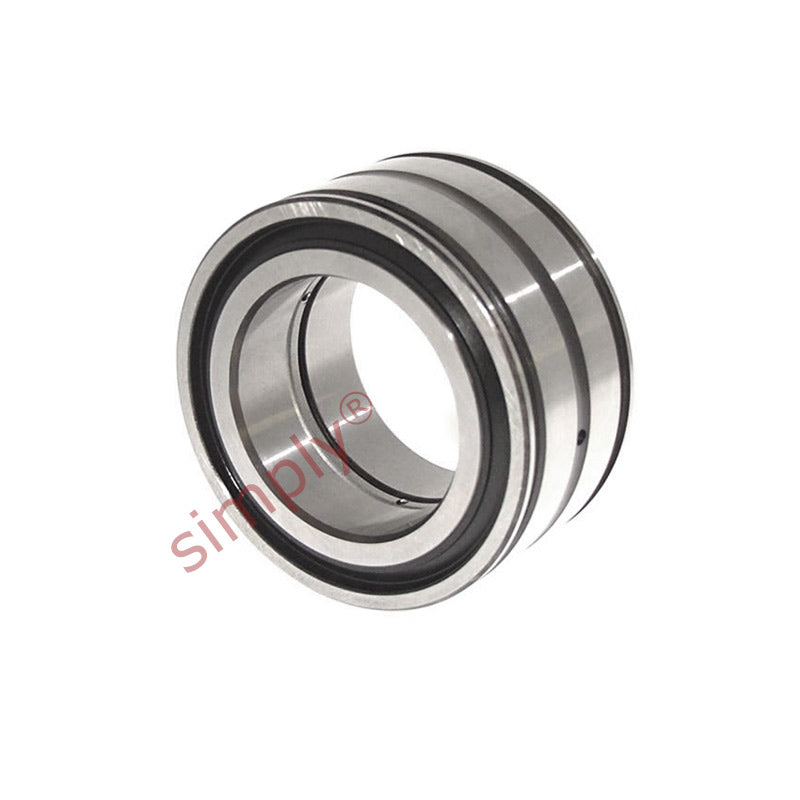

SKF NNF5036ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 180x280x136mm

Name: SKF NNF5036ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 180x280x136mm
Brand: SKF
SKU: NNF5036ADA-2LSV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: SKF - High Quality
Inside Diameter:: 180mm
Outside Diameter:: 280mm
Width:: 136mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	180mm
D	280mm
B	136mm
C	135mm
Dynamic load C	1170 kN
Static load Co	2120 kN
Fatigue load limit Pu	228 kN
Limiting speed	450 rpm
Weight	30 kg
d1	220mm
D1	274mm
E	259mm
C1+0.2	118.2mm
C2	8.4mm
b	5.2mm
b1	8mm
K	4mm
r min	2mm
r3r4 min	0.6mm
da min	187mm
das	214mm
Da max	275mm
Ca1 - 0.2	110mm
Ca2 - 0.2	108mm
ra max	2mm
rb max	0.6mm
Snap ring	SW280
Din 471	280x5
