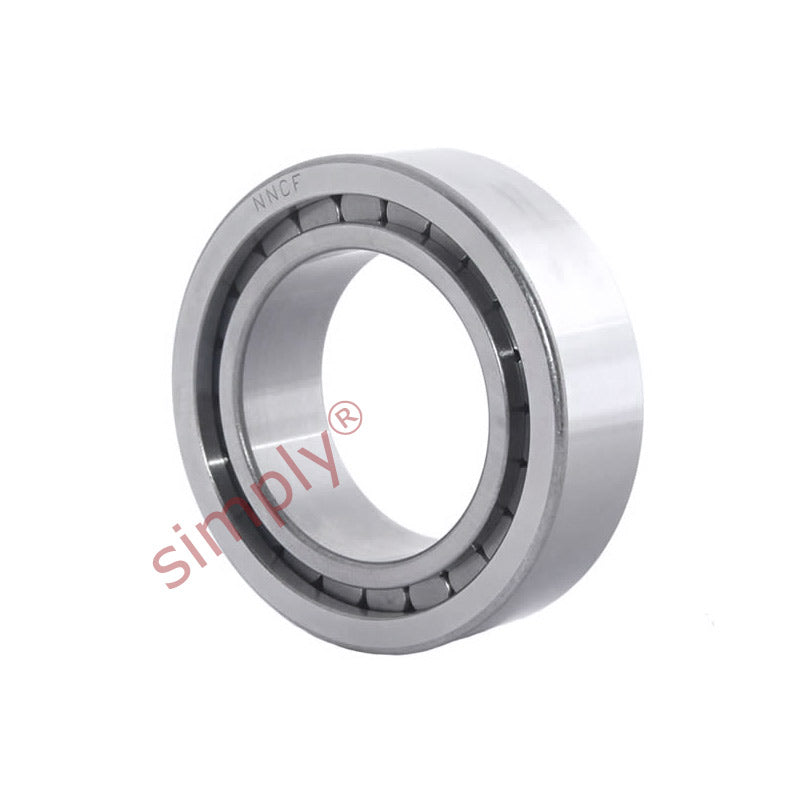

SKF NNCL4872CV Double Row Full Complement Cylindrical Roller Bearing 360x440x80mm

Name: SKF NNCL4872CV Double Row Full Complement Cylindrical Roller Bearing 360x440x80mm
Brand: SKF
SKU: NNCL4872CV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction.
Benefits: Tolerate axial load in one direction, none separable construction

Brand / Quality:: SKF - High Quality
Inside Diameter:: 360mm
Outside Diameter:: 440mm
Width:: 80mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	360mm
D	440mm
B	80mm
Dynamic load C	935 Kn
Static load Co	2550 Kn
Fatigue load limit Pu	224 Kn
Reference speed	560 rpm
Limiting speed	700 rpm
Weight	26 kg
d1	392mm
E	419.8mm
b1	9.4mm
K	5mm
r1r2 min	2.1mm
S	6mm
da min	371mm
Da max	429mm
Ra max	2mm
