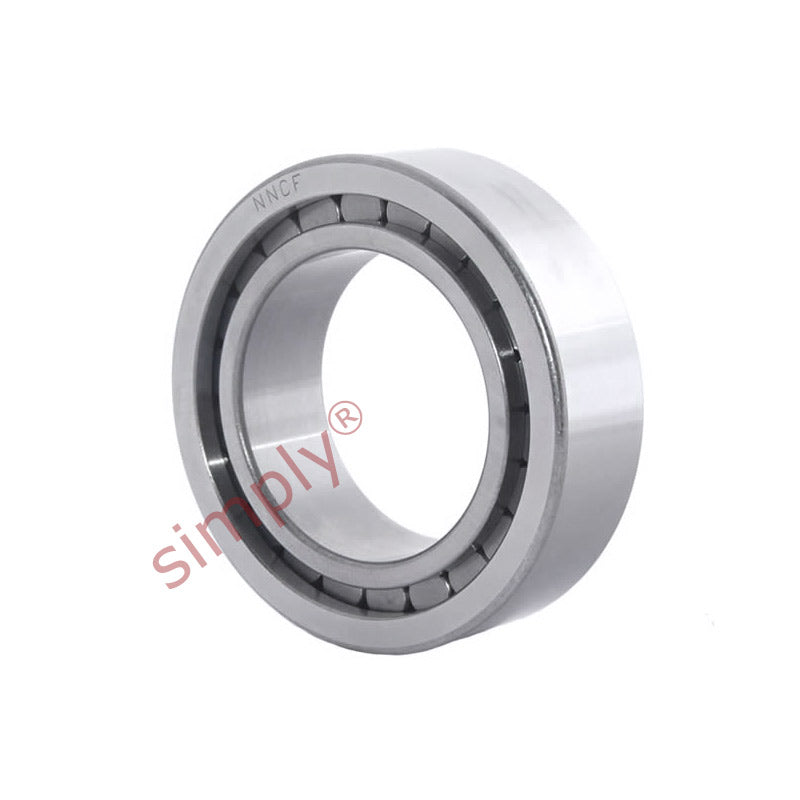

SKF NNCF5020CV Double Row Full Complement Cylindrical Roller Bearing 100x150x67mm
SKF NNCF5020CV Double Row Full Complement Cylindrical Roller Bearing 100x150x67mm
Out of stock
Share this product
Description
Description
|
SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 67mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 150mm |
| B | 67mm |
| Dynamic load C | 391 Kn |
| Static load Co | 620 Kn |
| Fatigue load limit Pu | 75 Kn |
| Reference speed | 2000 rpm |
| Limiting speed | 2600 rpm |
| Weight | 3.94 kg |
| d1 | 115mm |
| D1 | 134mm |
| E | 139.65mm |
| b1 | 6mm |
| K | 3.5mm |
| r1r2 min | 1.5mm |
| S | 4mm |
| da min | 107mm |
| das | 112mm |
| Da max | 143mm |
| Ra max | 1.5mm |
