SKU: NNCF5013CV-SKF

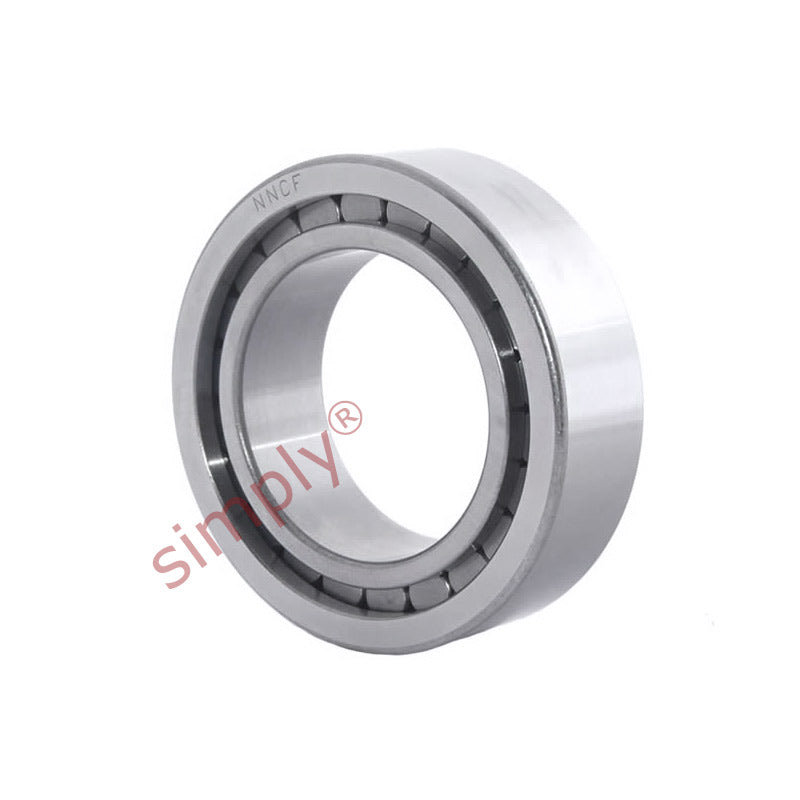

SKF NNCF5013CV Double Row Full Complement Cylindrical Roller Bearing 65x100x46mm
SKF NNCF5013CV Double Row Full Complement Cylindrical Roller Bearing 65x100x46mm
Out of stock
Share this product
Description
Description
|
SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 46mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 100mm |
| B | 46mm |
| Dynamic load C | 209 Kn |
| Static load Co | 325 Kn |
| Fatigue load limit Pu | 40 Kn |
| Reference speed | 3000 rpm |
| Limiting speed | 3800 rpm |
| Weight | 1.32 kg |
| d1 | 78.1mm |
| D1 | 88.3mm |
| E | 93.09mm |
| b1 | 4.5mm |
| K | 3.5mm |
| r1r2 min | 1.1mm |
| S | 1.5mm |
| da min | 71mm |
| das | 71mm |
| Da max | 94mm |
| Ra max | 1mm |
