SKU: NNC4976CV-SKF

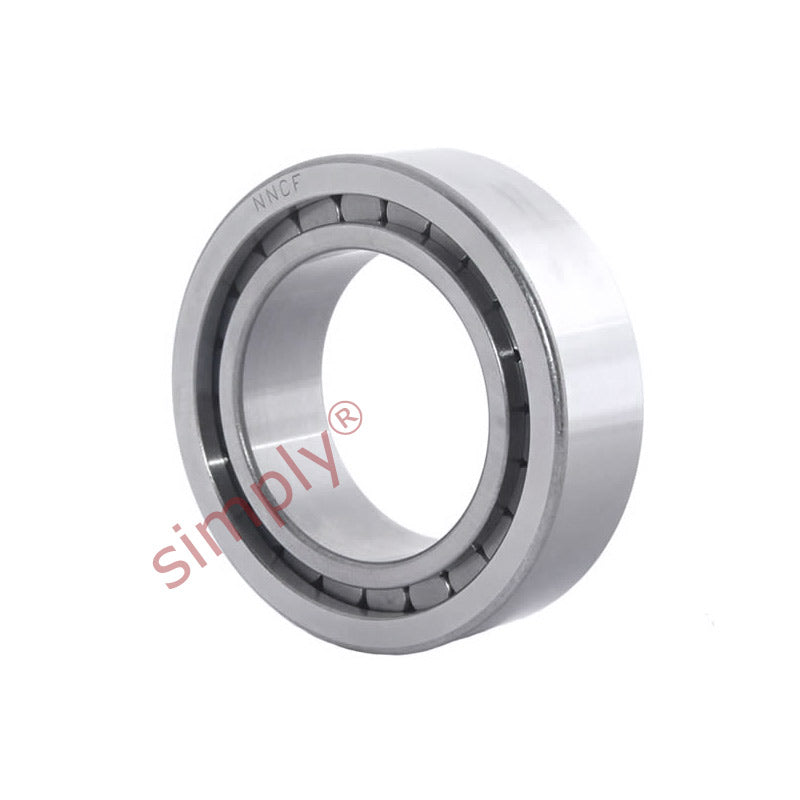

SKF NNC4976CV Double Row Full Complement Cylindrical Roller Bearing 380x520x140mm

Name: SKF NNC4976CV Double Row Full Complement Cylindrical Roller Bearing 380x520x140mm
Brand: SKF
SKU: NNC4976CV-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNCF Series Double Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. They can tolerate axial loads in one direction.
Benefits: Tolerate axial load in one direction, none separable construction

Brand / Quality:: SKF - High Quality
Inside Diameter:: 380mm
Outside Diameter:: 520mm
Width:: 140mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	380mm
D	520mm
B	140mm
Dynamic load C	2380 Kn
Static load Co	5700 Kn
Fatigue load limit Pu	500 Kn
Reference speed	500 rpm
Limiting speed	630 rpm
Weight	92.4 kg
d1	431mm
D1	468mm
E	481.35mm
b1	9.4mm
K	5mm
r1r2 min	4mm
da min	398mm
das	424mm
Da max	502mm
Ra max	3mm
