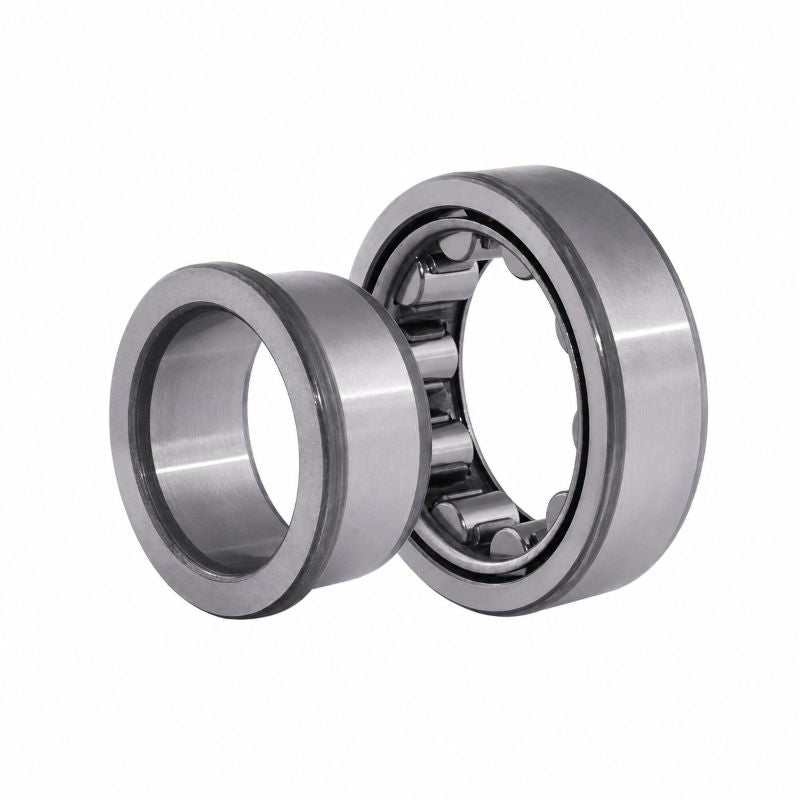

SKF NJ414 Single Row Cylindrical Roller Bearing 70x180x42mm
SKF NJ414 Single Row Cylindrical Roller Bearing 70x180x42mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 180mm
- Width:
- 42mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 180mm |
| B | 42mm |
| Dynamic load C | 229 kN |
| Static load Co | 240 kN |
| Fatigue load limit Pu | 30 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 5000 rpm |
| Weight | 5.45 kg |
| d1 | 110mm |
| D1 | 140mm |
| F,E | 100mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 3.5mm |
| da min | 86mm |
| da max | 97mm |
| db | 113mm |
| Da max | 164mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ414 |
| Angle Ring Weight | 0.61 kg |
| B1 | 12mm |
| B2 | 20mm |
