SKU: NJ408-M1-C3

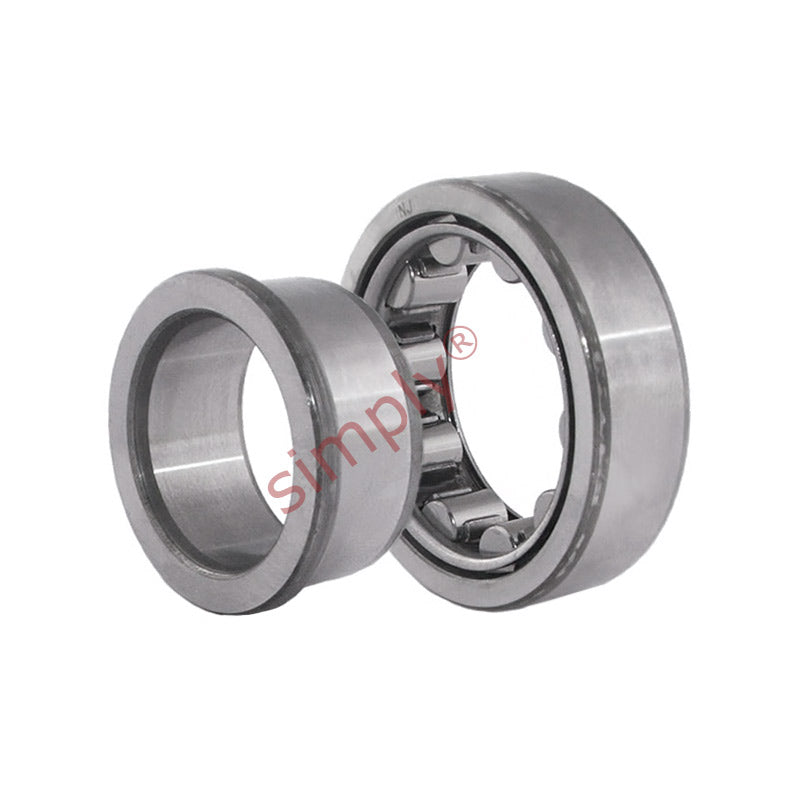

NJ408-M1-C3 X-life Cylindrical Roller Bearing with Cage 40x110x27mm
NJ408-M1-C3 X-life Cylindrical Roller Bearing with Cage 40x110x27mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 40 |
|---|---|
| D | 110 |
| B | 27 |
| r min | 2 |
| r1 min | 2 |
| s | 2.8 |
| E | 92 |
| F | 58 |
| D1 | 86.4 |
| d1 | 64.6 |
| da min | 53 |
| da max | 57 |
| dc min | 67 |
| Da max | 97 |
| ra max | 2 |
| Dynamic load | 119000 N |
| Static load | 95000 N |
| Fatigue limit load | 15800 N |
| Limiting speed | 11000 rpm rpm |
| Weight | 1.5 kg |
