SKU: NJ348MA-SKF

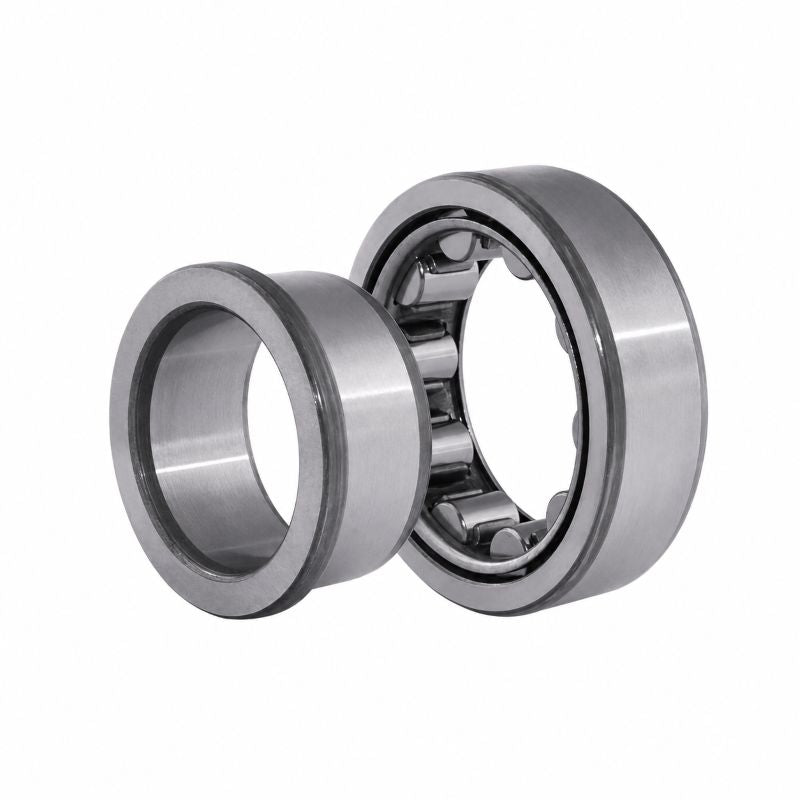

SKF NJ348MA Single Row Cylindrical Roller Bearing with Brass Cage 240x500x95mm
SKF NJ348MA Single Row Cylindrical Roller Bearing with Brass Cage 240x500x95mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 240mm
- Outside Diameter:
- 500mm
- Width:
- 95mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 240mm |
|---|---|
| D | 500mm |
| B | 95mm |
| Dynamic load C | 1450 kN |
| Static load Co | 2000 kN |
| Fatigue load limit Pu | 180 kN |
| Reference speed | 1300 rpm |
| Limiting speed | 2000 rpm |
| Weight | 98.5 kg |
| d1 | 335mm |
| D1 | 401mm |
| F,E | 310mm |
| r1r2 min | 5mm |
| r3r4 min | 5mm |
| S | 5.6mm |
| da min | 260mm |
| da max | 302mm |
| db | 339mm |
| Da max | 480mm |
| ra max | 4mm |
| rb max | 4mm |
| kr | 0.15 |
| Angle ring | HJ348 |
| Angle Ring Weight | 8.9 kg |
| B1 | 22mm |
| B2 | 39.5mm |
