SKU: NJ330ECM-EU

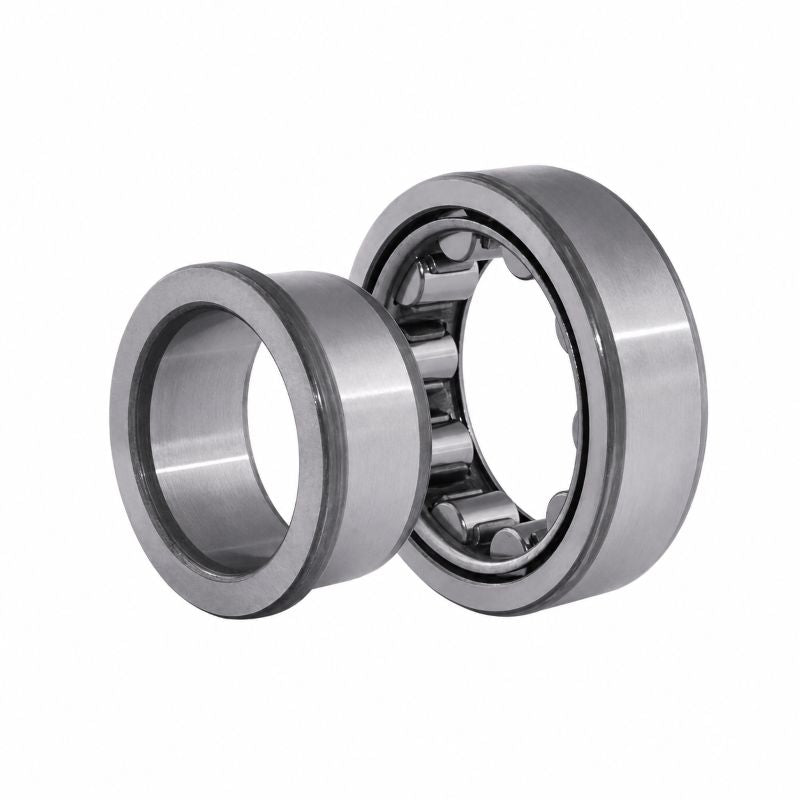

NJ330 Budget Single Row Cylindrical Roller Bearing 150x320x65mm
NJ330 Budget Single Row Cylindrical Roller Bearing 150x320x65mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 320mm
- Width:
- 65mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 150mm |
|---|---|
| D | 320mm |
| B | 65mm |
| Dynamic load C | 900 kN |
| Static load Co | 965 kN |
| Fatigue load limit Pu | 100 kN |
| Reference speed | 2200 rpm |
| Limiting speed | 2600 rpm |
| Weight | 27 kg |
| Cage options | MA |
| d1 | 209mm |
| D1 | 270mm |
| F, E | 193mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| s | 4mm |
| da min | 167mm |
| da max | 189mm |
| db min | 213mm |
| Da max | 303mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.15 |
| Angle ring | HJ330EC |
| Angle ring weight | 2.35kg |
| B1 | 15mm |
| B2 | 25mm |
