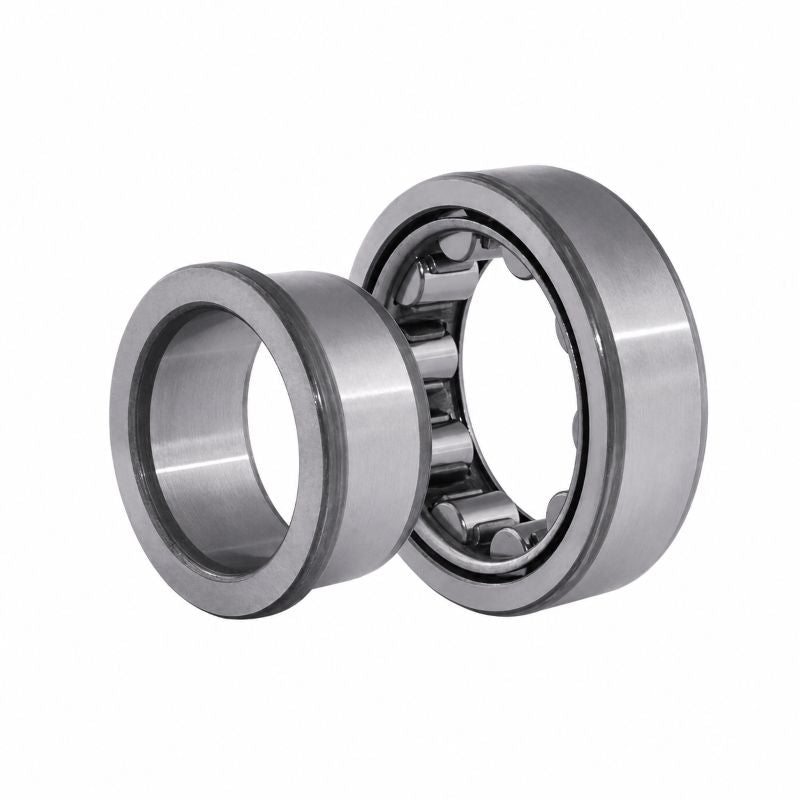

SKF NJ252MA Single Row Cylindrical Roller Bearing with Brass Cage 260x480x80mm
SKF NJ252MA Single Row Cylindrical Roller Bearing with Brass Cage 260x480x80mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 260mm
- Outside Diameter:
- 480mm
- Width:
- 80mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 260mm |
|---|---|
| D | 480mm |
| B | 80mm |
| Dynamic load C | 1170 kN |
| Static load Co | 1700 kN |
| Fatigue load limit Pu | 156 kN |
| Reference speed | 1400 rpm |
| Limiting speed | 2000 rpm |
| Weight | 70 kg |
| d1 | 340mm |
| D1 | 397mm |
| F,E | 320mm |
| r1r2 min | 5mm |
| r3r4 min | 5mm |
| S | 3.4mm |
| da min | 280mm |
| da max | 313mm |
| db | 344mm |
| Da max | 460mm |
| ra max | 4mm |
| rb max | 4mm |
| kr | 0.15 |
| Angle ring | HJ252 |
| Angle Ring Weight | 6.2 kg |
| B1 | 18mm |
| B2 | 33mm |
