SKU: NJ244ECML/C3-SKF

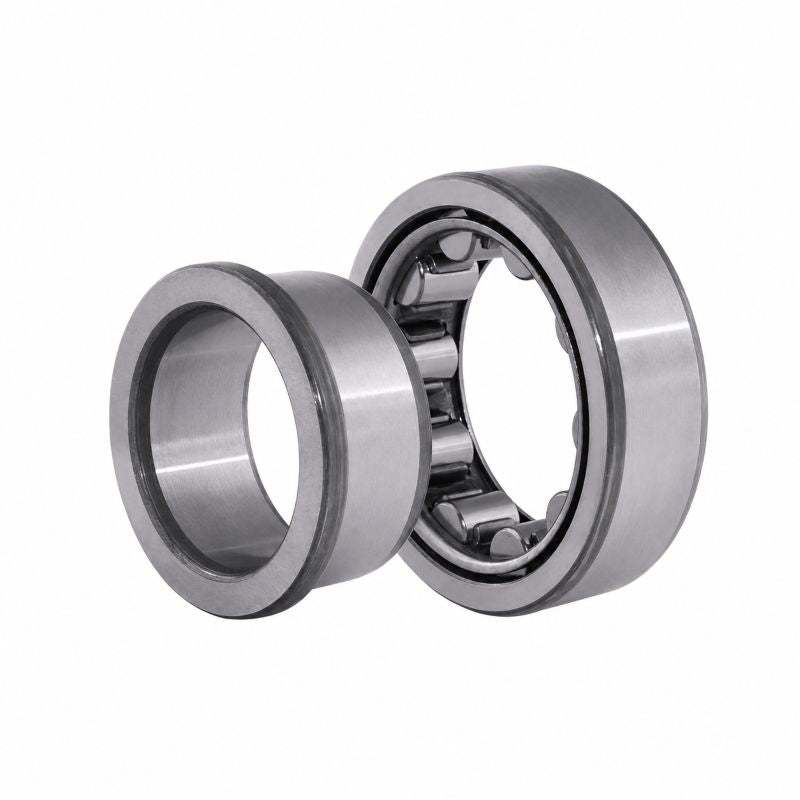

SKF NJ244ECMLC3 Single Row Cylindrical Roller Bearing with Brass Cage 220x400x65mm
SKF NJ244ECMLC3 Single Row Cylindrical Roller Bearing with Brass Cage 220x400x65mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 400mm
- Width:
- 65mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 220mm |
|---|---|
| D | 400mm |
| B | 65mm |
| Dynamic load C | 1060 kN |
| Static load Co | 1290 kN |
| Fatigue load limit Pu | 125 kN |
| Reference speed | 1600 rpm |
| Limiting speed | 2400 rpm |
| Weight | 39 kg |
| Alt cage | M |
| d1 | 284mm |
| D1 | 344mm |
| F,E | 268mm |
| r1r2 min | 4mm |
| r3r4 min | 4mm |
| S | 2.3mm |
| da min | 237mm |
| da max | 264mm |
| db | 288mm |
| Da max | 383mm |
| ra max | 3mm |
| rb max | 3mm |
| kr | 0.15 |
| Angle ring | HJ244EC |
| Angle ring weight | 3.25 kg |
| B1 | 15mm |
| B2 | 25mm |
