SKU: NJ2338-EX-M1-C3+HJ2338-EX

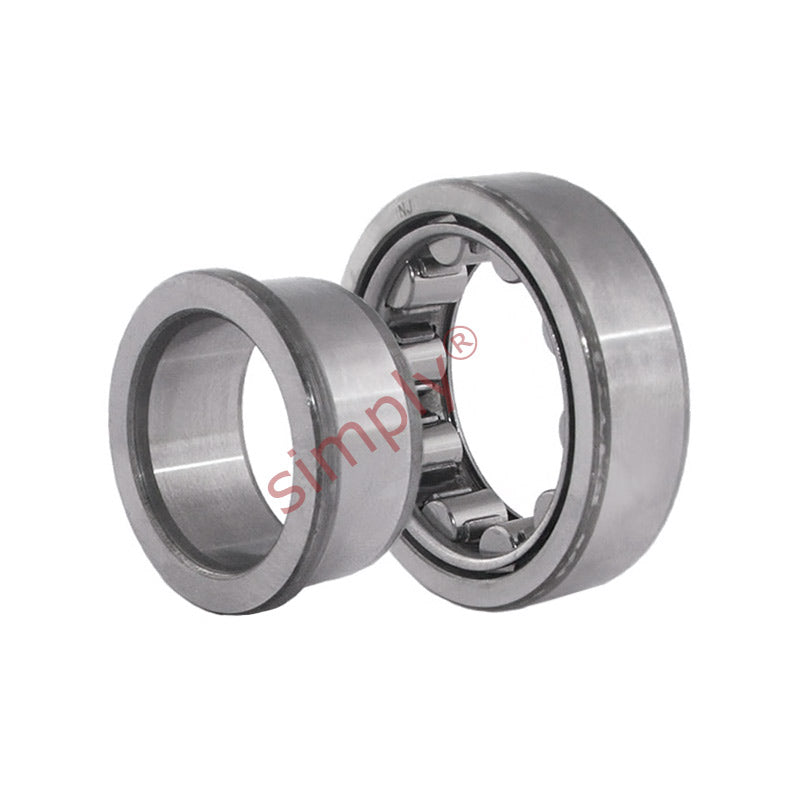

NJ2338-EX-M1-C3 + HJ2338-EX Cylindrical Roller Bearing with Cage and L-section Ring 190x400x132mm
NJ2338-EX-M1-C3 + HJ2338-EX Cylindrical Roller Bearing with Cage and L-section Ring 190x400x132mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 190mm
- Outside Diameter:
- 400mm
- Width:
- 132mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 190 |
|---|---|
| D | 400 |
| B | 132 |
| r min | 5 |
| r1 min | 5 |
| E | 360 |
| F | 240 |
| D1 | 340.5 |
| d1 | 262.5 |
| B1 | 18 |
| B2 | 36.5 |
| da min | 210 |
| dc min | 265.3 |
| Da max | 380 |
| ra max | 4 |
| Dynamic load | 1900000 N |
| Static load | 2650000 N |
| Fatigue limit load | 285000 N |
| Limiting speed | 2600 rpm |
| Reference speed | 1030 rpm |
| L-section ring | HJ2338-EX |
| Bearing weight | 84.4 kg |
| L-section ring weight | 4.8 kg |
