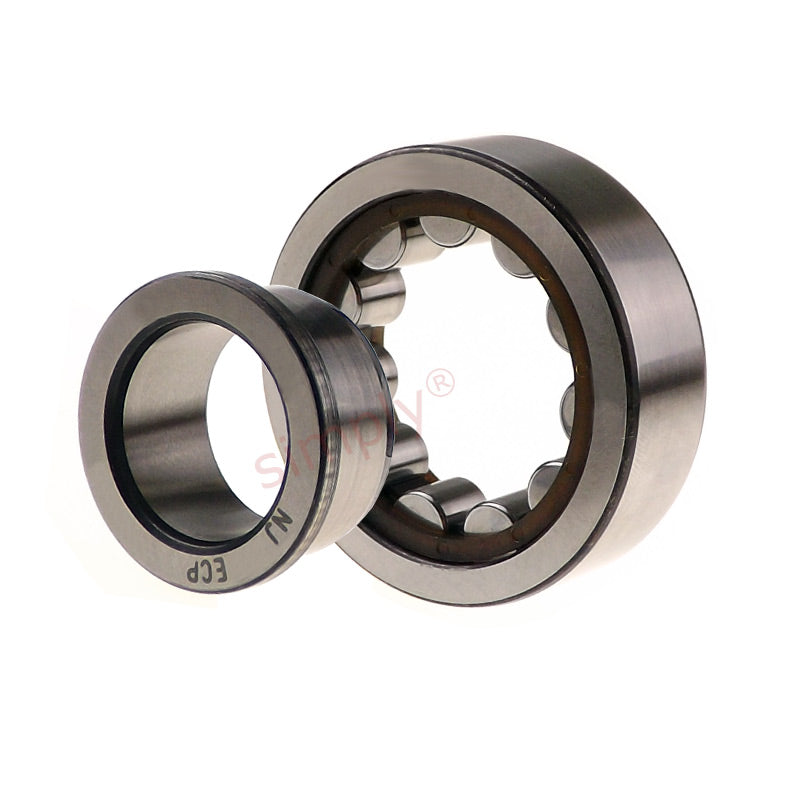

SKF NJ226ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 130x230x40mm
SKF NJ226ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 130x230x40mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 230mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 130mm |
|---|---|
| D | 230mm |
| B | 40mm |
| Dynamic load C | 415 kN |
| Static load Co | 455 kN |
| Fatigue load limit Pu | 51 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 3400 rpm |
| Weight | 6.6 kg |
| Alt cage | J.M.ML |
| d1 | 164mm |
| D1 | 202mm |
| F,E | 153.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 2.1mm |
| da min | 144mm |
| da max | 150mm |
| db | 167mm |
| Da max | 216mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
| Angle ring | HJ226EC |
| Angle ring weight | 0.75 kg |
| B1 | 11mm |
| B2 | 17mm |
