SKU: NCF29530V-SKF

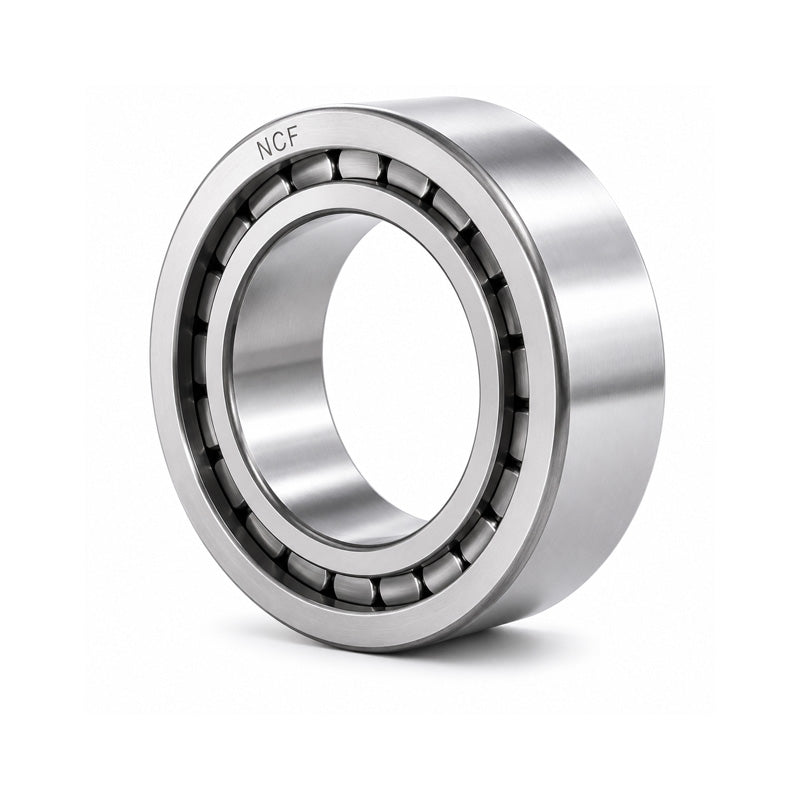

SKF NCF29530V Single Row Cylindrical Roller Bearing 530x710x106mm
SKF NCF29530V Single Row Cylindrical Roller Bearing 530x710x106mm
Out of stock
Description
Description
|
SKF NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 530mm
- Outside Diameter:
- 710mm
- Width:
- 106mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 530mm |
|---|---|
| D | 710mm |
| B | 106mm |
| Dynamic load C | 2640 kN |
| Static load Co | 6100 kN |
| Fatigue load limit Pu | 480 kN |
| Reference speed | 340 rpm |
| Limiting speed | 430 rpm |
| Weight | 120 kg |
| d1 | 598mm |
| D1 | 661mm |
| E/F | 676mm |
| r1r2 min | 5mm |
| r3r4 min | 5mm |
| S | 7mm |
| da min | 548mm |
| das | 589mm |
| Da max | 692mm |
| Db max | 692mm |
| ra max | 4mm |
| rb max | 4mm |
