SKU: NCF18530V-SKF

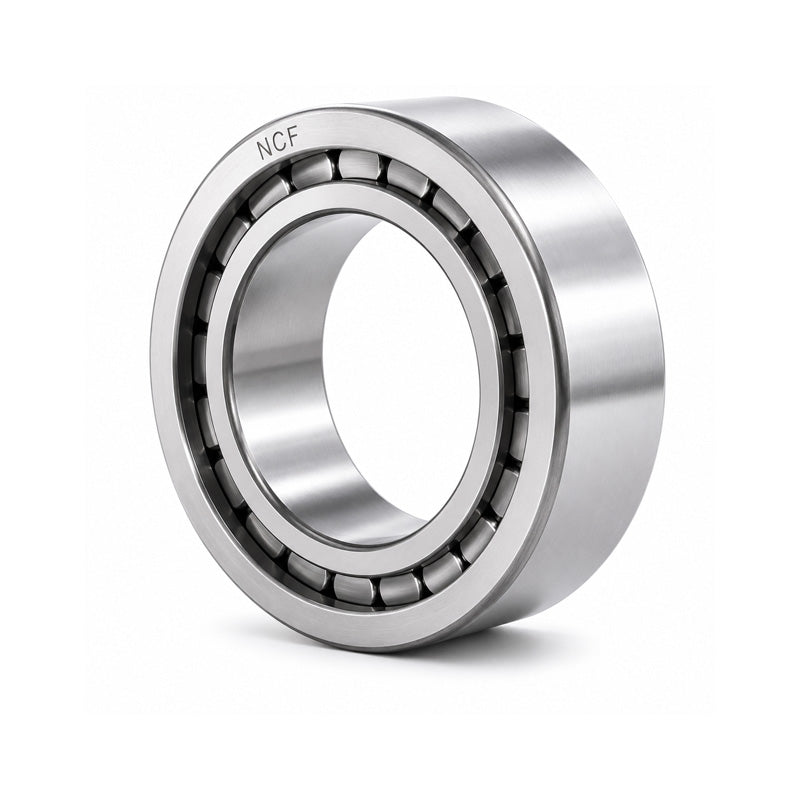

SKF NCF18530V Single Row Cylindrical Roller Bearing 530x650x56mm
SKF NCF18530V Single Row Cylindrical Roller Bearing 530x650x56mm
Out of stock
Description
Description
|
SKF NCF Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the inner race and one on the outer raceway serving to permit axial location in one direction, a retaining ring is fitted opposite the integral flange to maintain the assembly. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 530mm
- Outside Diameter:
- 650mm
- Width:
- 56mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 530mm |
|---|---|
| D | 650mm |
| B | 56mm |
| Dynamic load C | 990 kN |
| Static load Co | 2240 kN |
| Fatigue load limit Pu | 180 kN |
| Reference speed | 360 rpm |
| Limiting speed | 450 rpm |
| Weight | 38.5 kg |
| d1 | 573mm |
| D1 | 612mm |
| E/F | 624.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 5mm |
| da min | 543mm |
| das | 567mm |
| Da max | 637mm |
| Db max | 637mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
