SKU: NAO30x45x17-EU

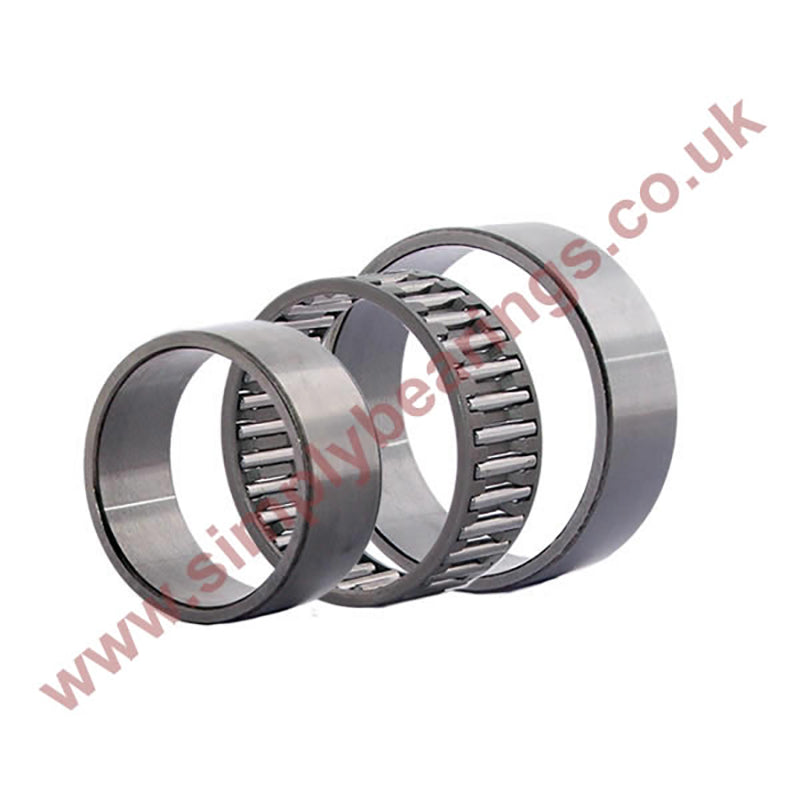

NAO30x45x17 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO30x45x17 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Out of stock
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 45mm
- Width:
- 17mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 45mm |
| B | 17mm |
| Dynamic load C | 19800 N |
| Static load Co | 39000 N |
| Fatigue load limit Pu | 4650 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| E | 40mm |
| F | 35mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.8mm |
| da | 39.4mm |
| db | 34.5mm |
| Da | 40.5mm |
| Db | 35.6mm |
| ra max | 0.3mm |
| Weight | 100 g |
