SKU: N308ECP/C3-SKF

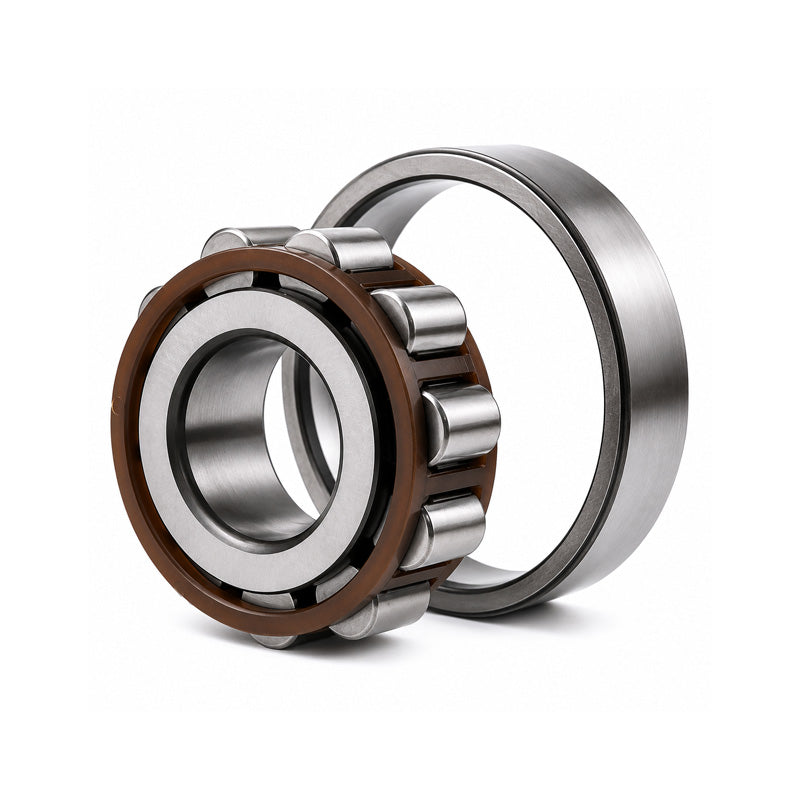

SKF N308ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 40x90x23mm
SKF N308ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 40x90x23mm
Out of stock
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load C | 93 kN |
| Static load Co | 78 kN |
| Fatigue load limit Pu | 10.2 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.65 kg |
| d1 | 57.5mm |
| F,E | 80mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.4mm |
| da min | 49mm |
| da max | 78mm |
| db | 82mm |
| Da max | 81mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
