SKU: N304ECP/C3-SKF

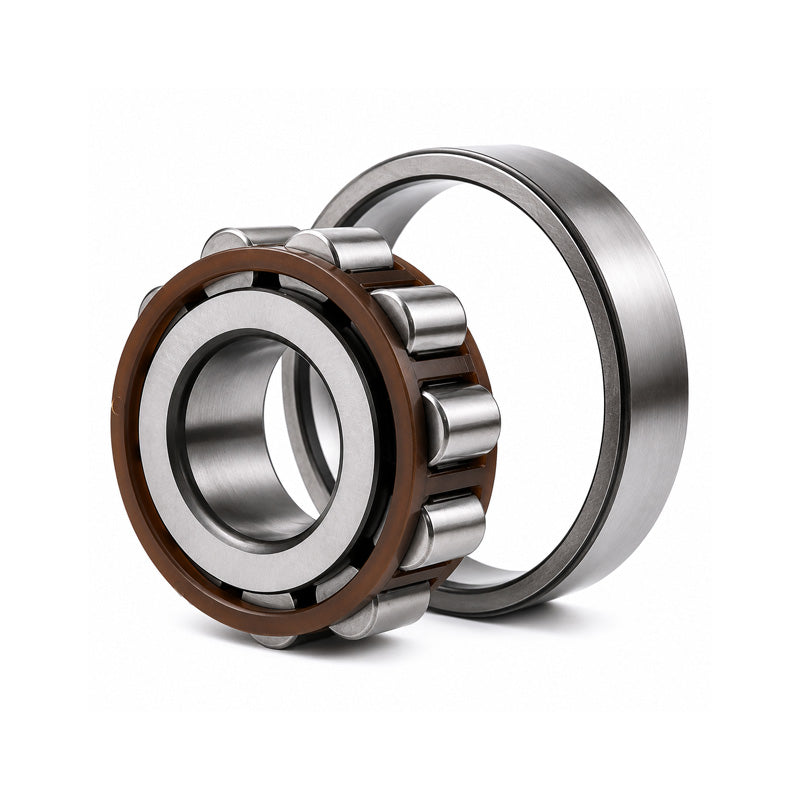

SKF N304ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 20x52x15mm
SKF N304ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 20x52x15mm
Out of stock
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 35.5 kN |
| Static load Co | 26 kN |
| Fatigue load limit Pu | 3.25 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 18000 rpm |
| Weight | 0.15 kg |
| d1 | 31.2mm |
| F,E | 45.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| S | 0.9mm |
| da min | 27mm |
| da max | 44mm |
| db | 47mm |
| Da max | 47.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
