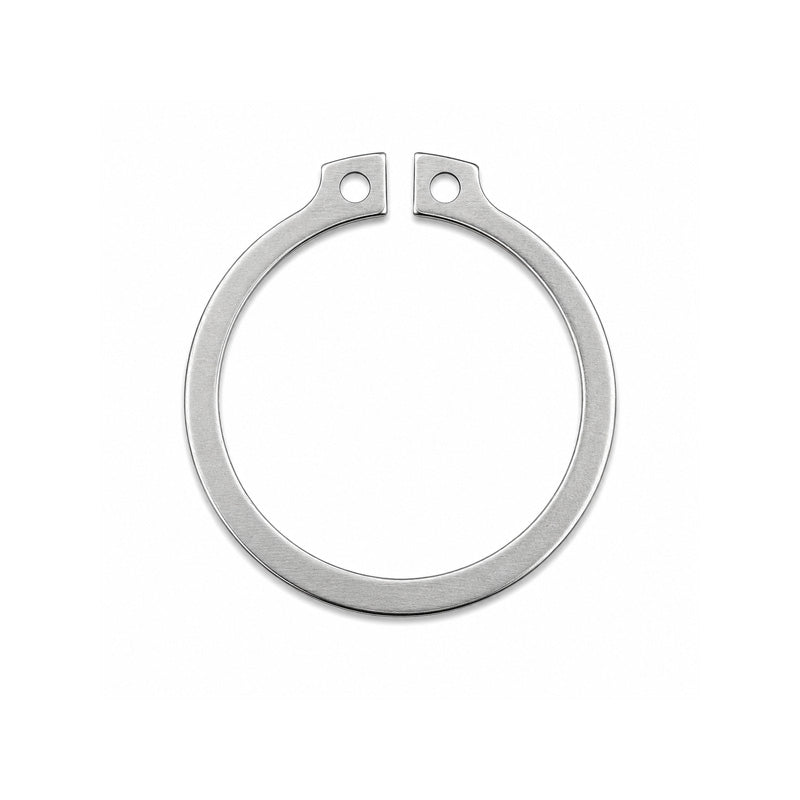

Stainless Steel External Circlip for 9.5 inch Shaft Diameter Un-Sprung Diameter 8.915 inch
Stainless Steel External Circlip for 9.5 inch Shaft Diameter Un-Sprung Diameter 8.915 inch
Equivalent to: N1400-950SS
Out of stock
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 226.44mm = 8.915 inch
- Material:
- Stainless Steel
- Shaft Size:
- 241.3mm = 9.5 (9-1/2) inch
- Thickness:
- 4.76mm = 0.187 (3/16) inch
- Groove Diameter:
- 231.14mm = 9.1 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 9.500 inch |
| Ring Thickness (t) | 0.187 inch |
| Thickness tolerance (t) | 0.005 inch |
| Unstressed diameter (D) | 8.915 inch |
| Unstressed diameter tolerance (D) | +0.020 / -0.160 inch |
| Lug (L) | inch |
| Beam (b) | 0.625 inch |
| h | 0.42 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 9.100 inch |
| Groove tolerance (G) | 0.008 inch |
| Minimum Groove Width (W) | 0.209 inch |
| Groove Width Tolerance (W) | +0.008 / -0.000 inch |
| Groove depth (d) | 0.2 inch |
