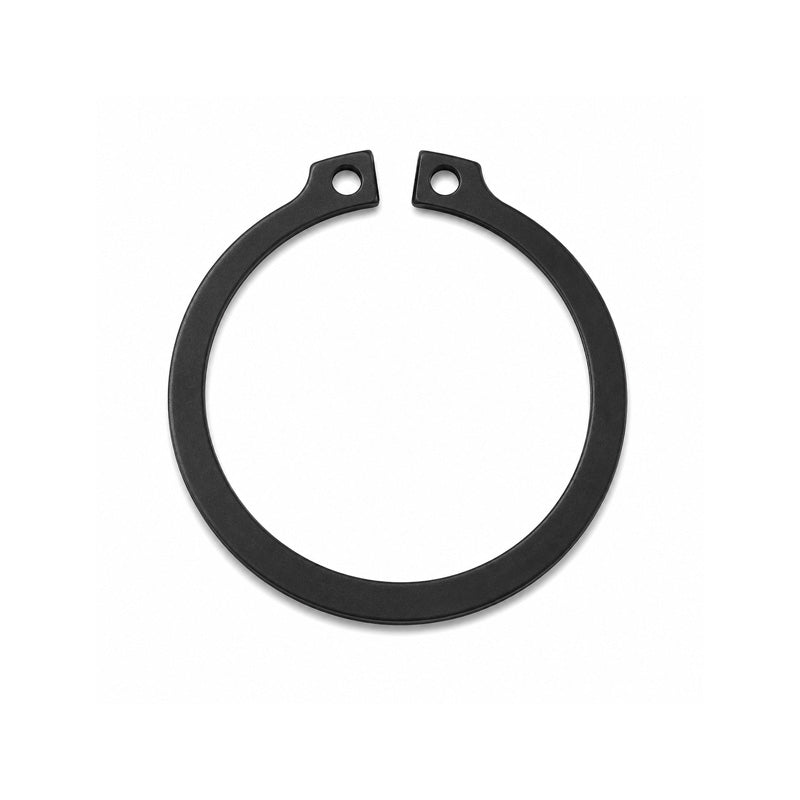

External Circlip for 4 inch Shaft Diameter Un-Sprung Diameter 3.700 inch
External Circlip for 4 inch Shaft Diameter Un-Sprung Diameter 3.700 inch
Equivalent to: N1400-400
Out of stock
Description
Description
|
Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 93.98mm = 3.7 inch
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 101.6mm = 4 inch
- Thickness:
- 2.78mm = 0.109 (7/64) inch
- Groove Diameter:
- 96.32mm = 3.792 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 4.000 inch |
| Ring Thickness (t) | 0.109 inch |
| Thickness tolerance (t) | 0.003 inch |
| Unstressed diameter (D) | 3.700 inch |
| Unstressed diameter tolerance (D) | +0.020 / -0.030 inch |
| Lug (L) | 0.352 inch |
| Beam (b) | 0.344 inch |
| h | 0.123 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 3.792 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.12 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.104 inch |
