SKU: N1400-1000SS

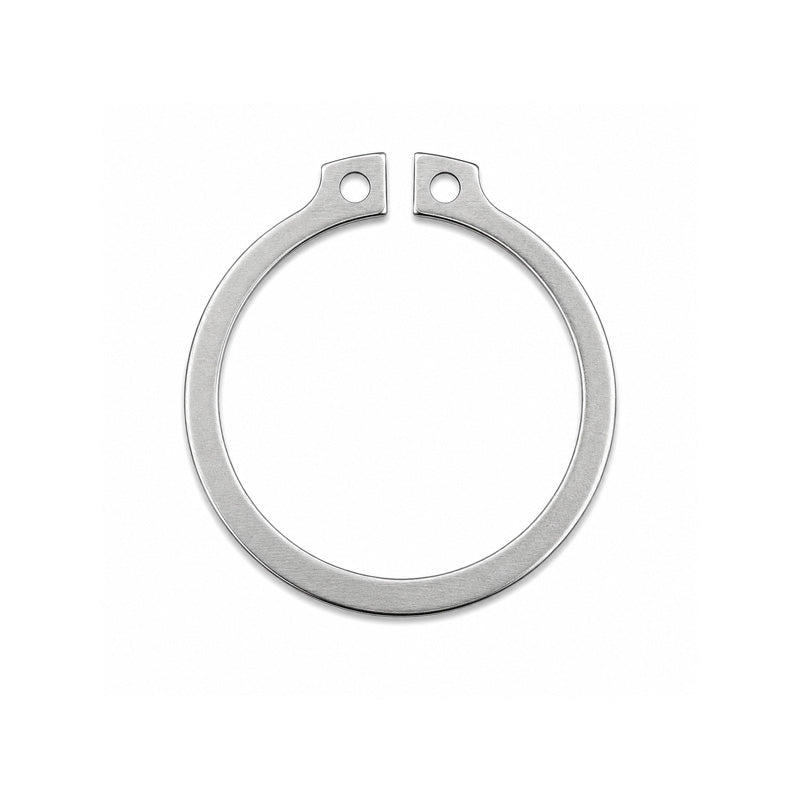

Stainless Steel External Circlip for 10 inch Shaft Diameter Un-Sprung Diameter 9.385 inch
Stainless Steel External Circlip for 10 inch Shaft Diameter Un-Sprung Diameter 9.385 inch
Equivalent to: N1400-1000SS
Out of stock
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 238.38mm = 9.385 inch
- Material:
- Stainless Steel
- Shaft Size:
- 254mm = 10 inch
- Thickness:
- 4.76mm = 0.187 (3/16) inch
- Groove Diameter:
- 243.21mm = 9.575 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 10.000 inch |
| Ring Thickness (t) | 0.187 inch |
| Thickness tolerance (t) | 0.005 inch |
| Unstressed diameter (D) | 9.385 inch |
| Unstressed diameter tolerance (D) | +0.020 / -0.160 inch |
| Lug (L) | 0.632 inch |
| Beam (b) | 0.625 inch |
| h | 0.37 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 9.575 inch |
| Groove tolerance (G) | 0.008 inch |
| Minimum Groove Width (W) | 0.209 inch |
| Groove Width Tolerance (W) | +0.008 / -0.000 inch |
| Groove depth (d) | 0.212 inch |
