SKU: N1400-027

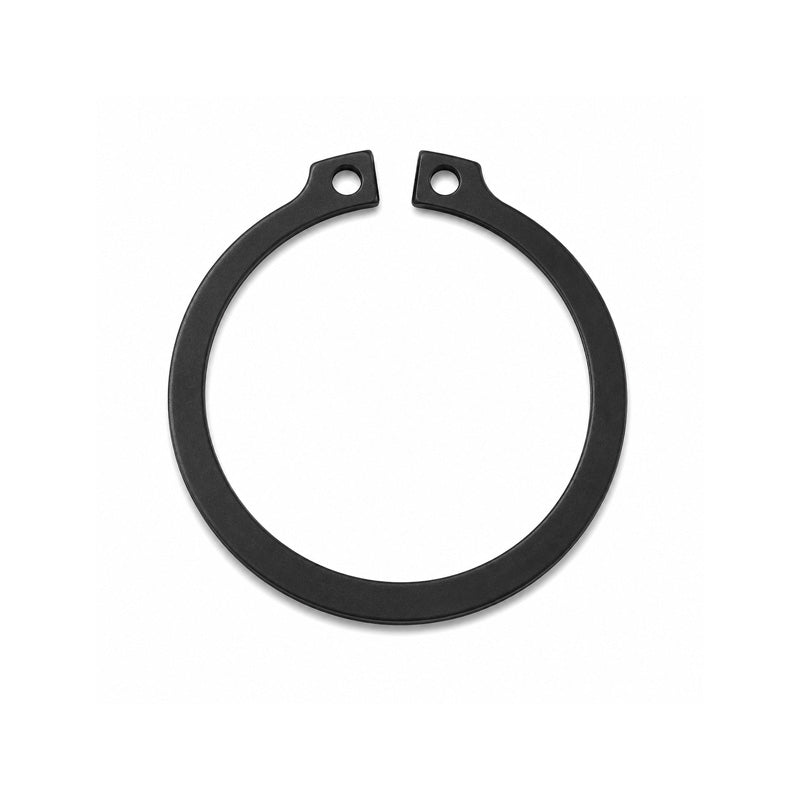

External Circlip for 0.27 inch Shaft Diameter Un-Sprung Diameter 0.25 inch
External Circlip for 0.27 inch Shaft Diameter Un-Sprung Diameter 0.25 inch
Equivalent to: N1400-027
Out of stock
Description
Description
|
Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 6.35mm = 0.25 (1/4) inch
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 7.01mm = 0.276 inch
- Thickness:
- 0.64mm = 0.025 inch
- Groove Diameter:
- 6.48mm = 0.255 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 0.276 inch |
| Ring Thickness (t) | 0.025 inch |
| Thickness tolerance (t) | 0.002 inch |
| Unstressed diameter (D) | 0.25 inch |
| Unstressed diameter tolerance (D) | +0.002 / -0.005 inch |
| Lug (L) | 0.084 inch |
| Beam (b) | 0.035 inch |
| h | 0.039 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.255 inch |
| Groove tolerance (G) | 0.002 inch |
| Minimum Groove Width (W) | 0.029 inch |
| Groove Width Tolerance (W) | +0.003 / -0.000 inch |
| Groove depth (d) | 0.01 inch |
