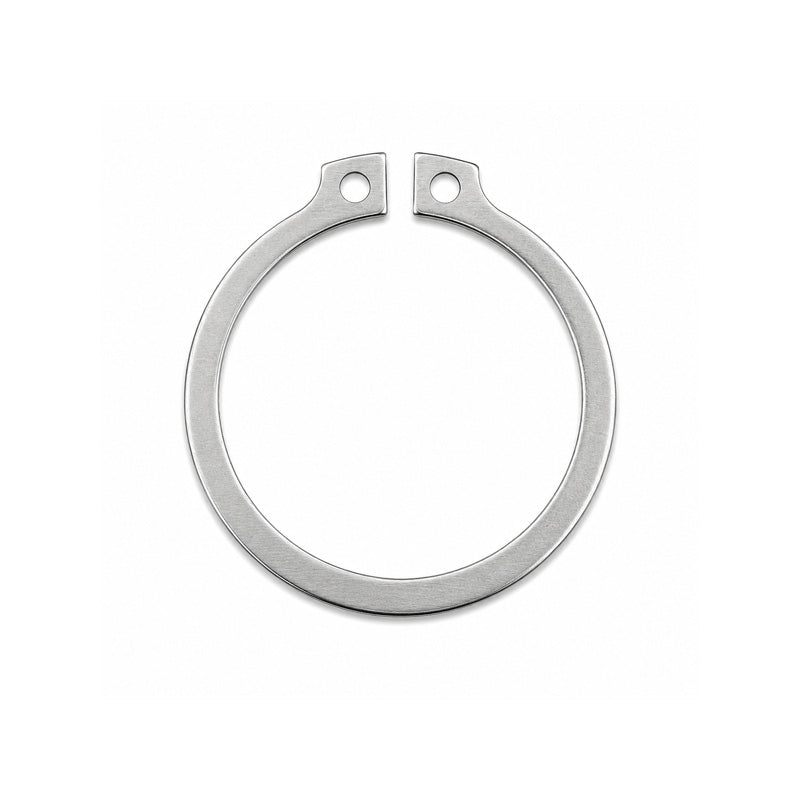

Stainless Steel External Circlip for 0.15 inch Shaft Diameter Un-Sprung Diameter 0.142 inch
Stainless Steel External Circlip for 0.15 inch Shaft Diameter Un-Sprung Diameter 0.142 inch
Equivalent to: N1400-015SS
Out of stock
Description
Description
|
Stainless Steel Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Stainless Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable, corrosion resistant. |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 3.61mm = 0.142 inch
- Material:
- Stainless Steel
- Shaft Size:
- 3.97mm = 0.156 (5/32) inch
- Thickness:
- 0.25mm = 0.01 inch
- Groove Diameter:
- 3.71mm = 0.146 inch
Technical
Technical

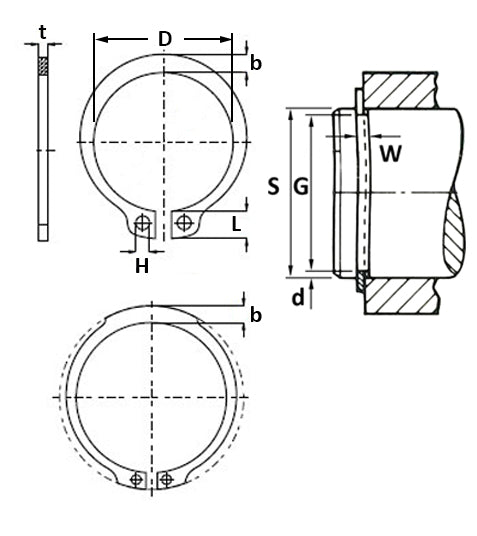

| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 0.156 inch |
| Ring Thickness (t) | 0.01 inch |
| Thickness tolerance (t) | 0.001 inch |
| Unstressed diameter (D) | 0.142 inch |
| Unstressed diameter tolerance (D) | +0.002 / -0.004 inch |
| Lug (L) | 0.056 inch |
| Beam (b) | 0.026 inch |
| h | 0.016 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.146 inch |
| Groove tolerance (G) | 0.0015 inch |
| Minimum Groove Width (W) | 0.012 inch |
| Groove Width Tolerance (W) | +0.002 / -0.000 inch |
| Groove depth (d) | 0.005 inch |
