SKU: N1300-275SS

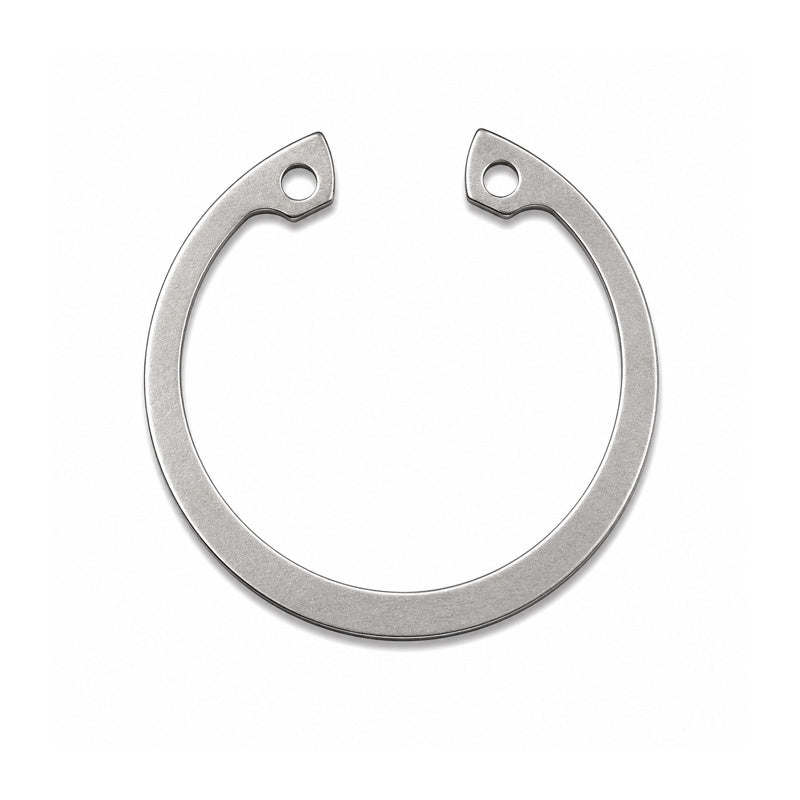

Stainless Steel Internal Circlip for 2.75 inch Bore Diameter Un-Sprung Diameter 3.050 inch
Stainless Steel Internal Circlip for 2.75 inch Bore Diameter Un-Sprung Diameter 3.050 inch
Equivalent to: N1300-275SS
Out of stock
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 69.85mm = 2.75 (2-3/4) inch
- Outside Diameter:
- 77.47mm = 3.05 inch
- Material:
- Stainless Steel
- Thickness:
- 2.36mm = 0.093 inch
- Groove Diameter:
- 74.02mm = 2.914 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 2.750 inch |
| Ring Thickness (t) | 0.093 inch |
| Thickness tolerance (t) | 0.093 inch |
| Unstressed diameter (D) | 3.050 inch |
| Unstressed diameter tolerance (D) | +0.040 / -0.030 inch |
| Lug (L) | 0.284 inch |
| Beam (b) | 0.234 inch |
| h | 0.108 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 2.914 inch |
| Groove tolerance (G) | 0.006 inch |
| Minimum Groove Width (W) | 0.103 inch |
| Groove Width Tolerance (W) | +0.005 / -0.000 inch |
| Groove depth (d) | 0.082 inch |
